With Manual Transaxle

1. Lightly lubricate the armature shaft and the overrunning clutch with Lubriplate lubricant GM P/N 1050109, or with the equivalent.
2. Install the overrunning clutch assembly (2) to the armature (1).
3. Install the armature retaining ring (4) to the armature. Slide the armature stop ring (3) away from the overrunning clutch assembly in order to cover the armature retaining ring.
4. Lightly lubricate the drive bushing with Lubriplate lubricant GM P/N 1050109, or with the equivalent.
5. Install the drive bushing to the armature.

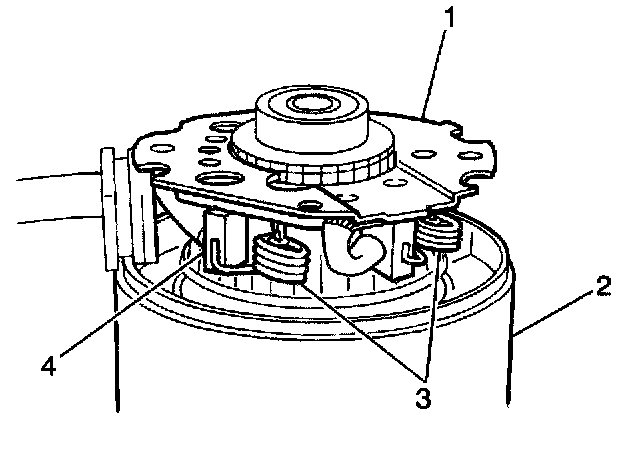

6. Install the brush holder (3) to the yoke (2).




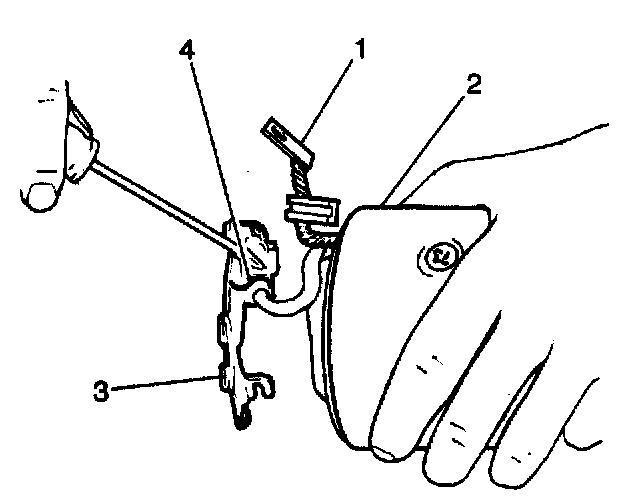

7. Install the brushes (4) to the brush holder (1).

IMPORTANT: The brushes must contact the commutator end after installation.

8. Install the armature to the yoke (2).
9. Lightly lubricate the contact points of the pinion drive lever with Lubriplate lubricant GM P/N 1050109, or with the equivalent.
10. Install the pinion drive lever to the drive housing.
11. Install the drive housing (1) to the yoke (3), aligning the drive housing-to-yoke matchmarks.
12. Lightly lubricate the commutator end bushing with Lubriplate lubricant GM P/N 1050109, or with the equivalent.
13. Install the commutator end bushing and the washers to the yoke.

NOTE: Refer to Fastener Notice in Service Precautions.

14. Install the commutator end cover to the yoke. Install the 2 bolts and the 2 screws.

Tighten
Tighten the bolts to 8 N.m (71 in lb).

15. Install the solenoid.
