Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Floor Harness

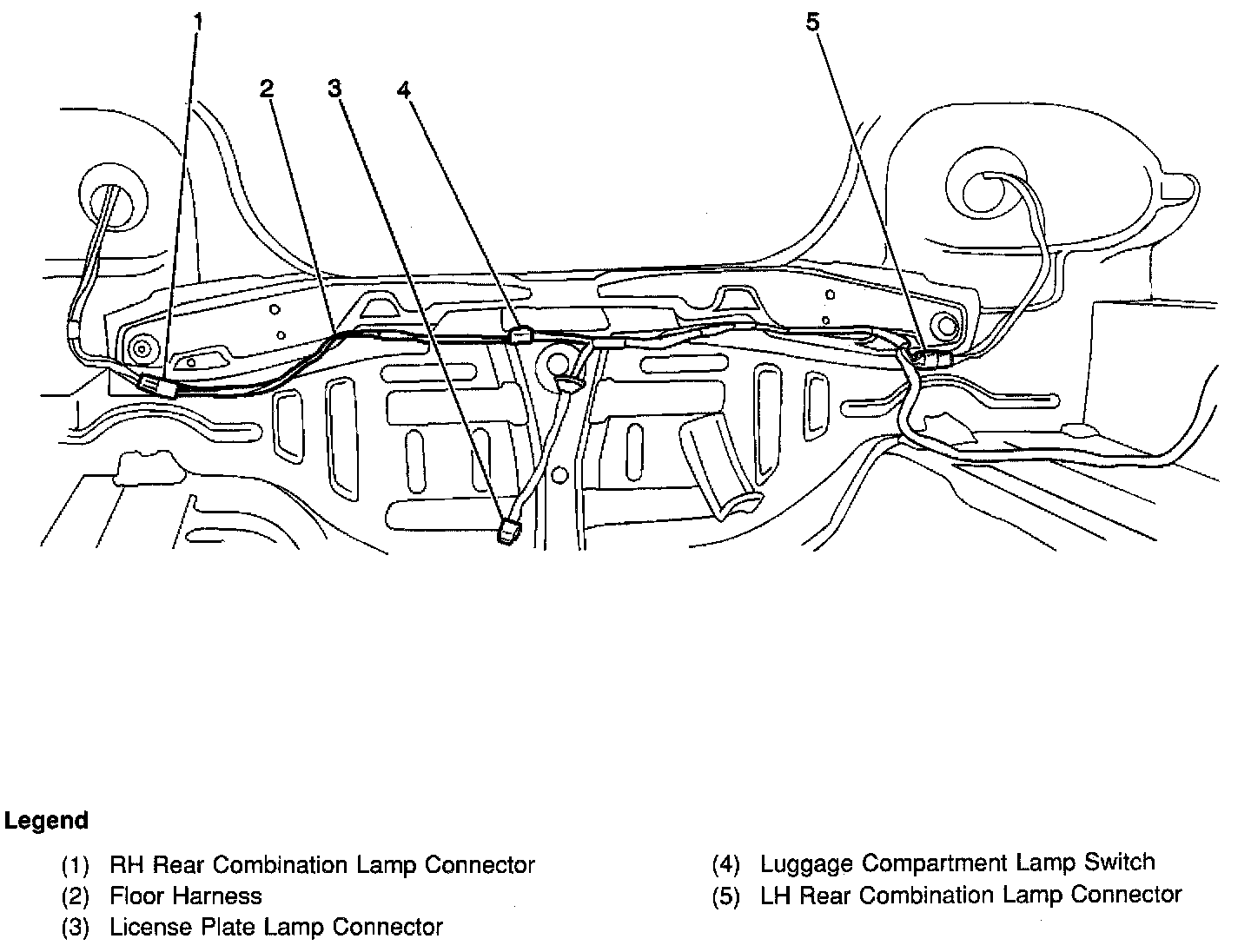

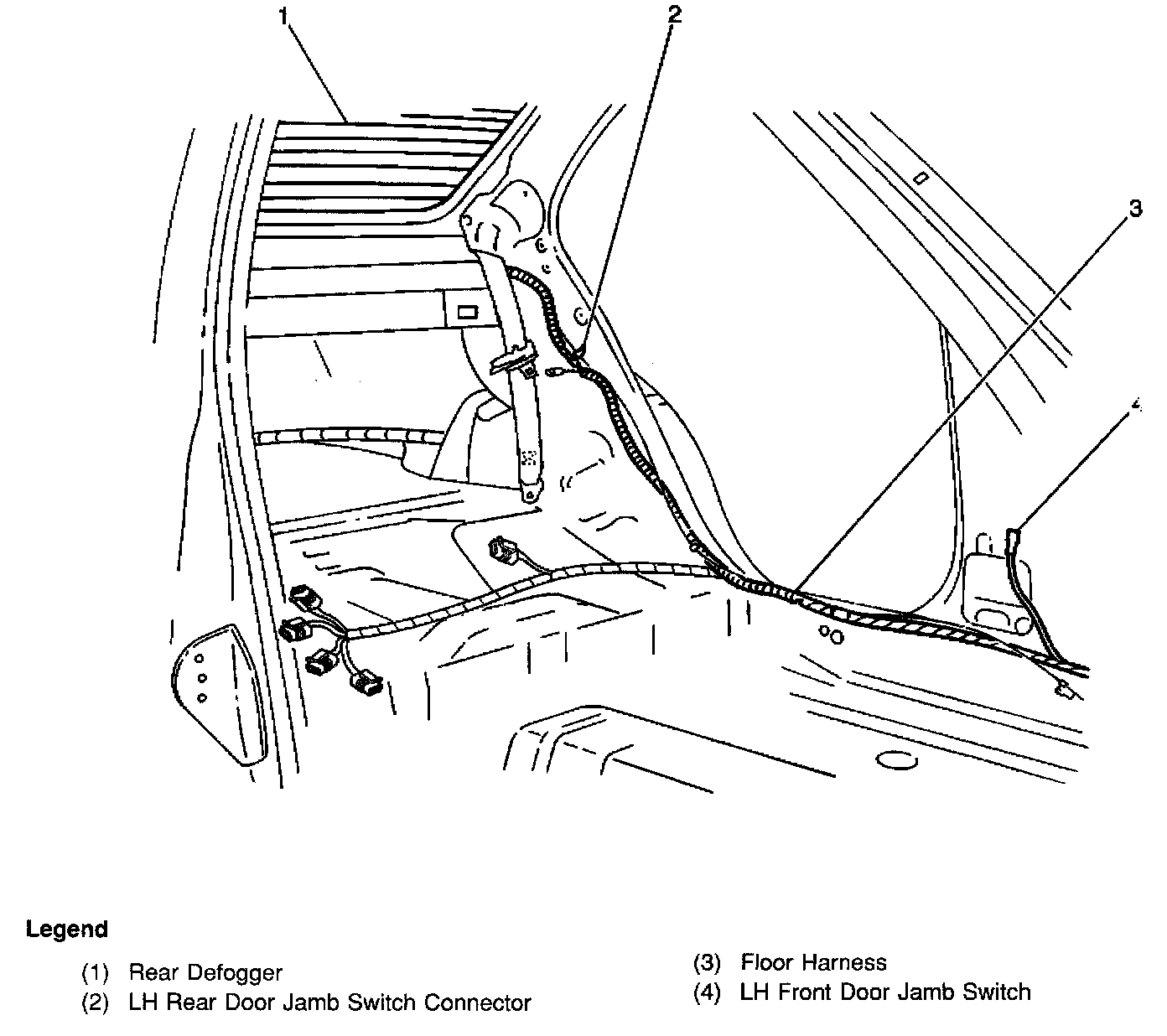

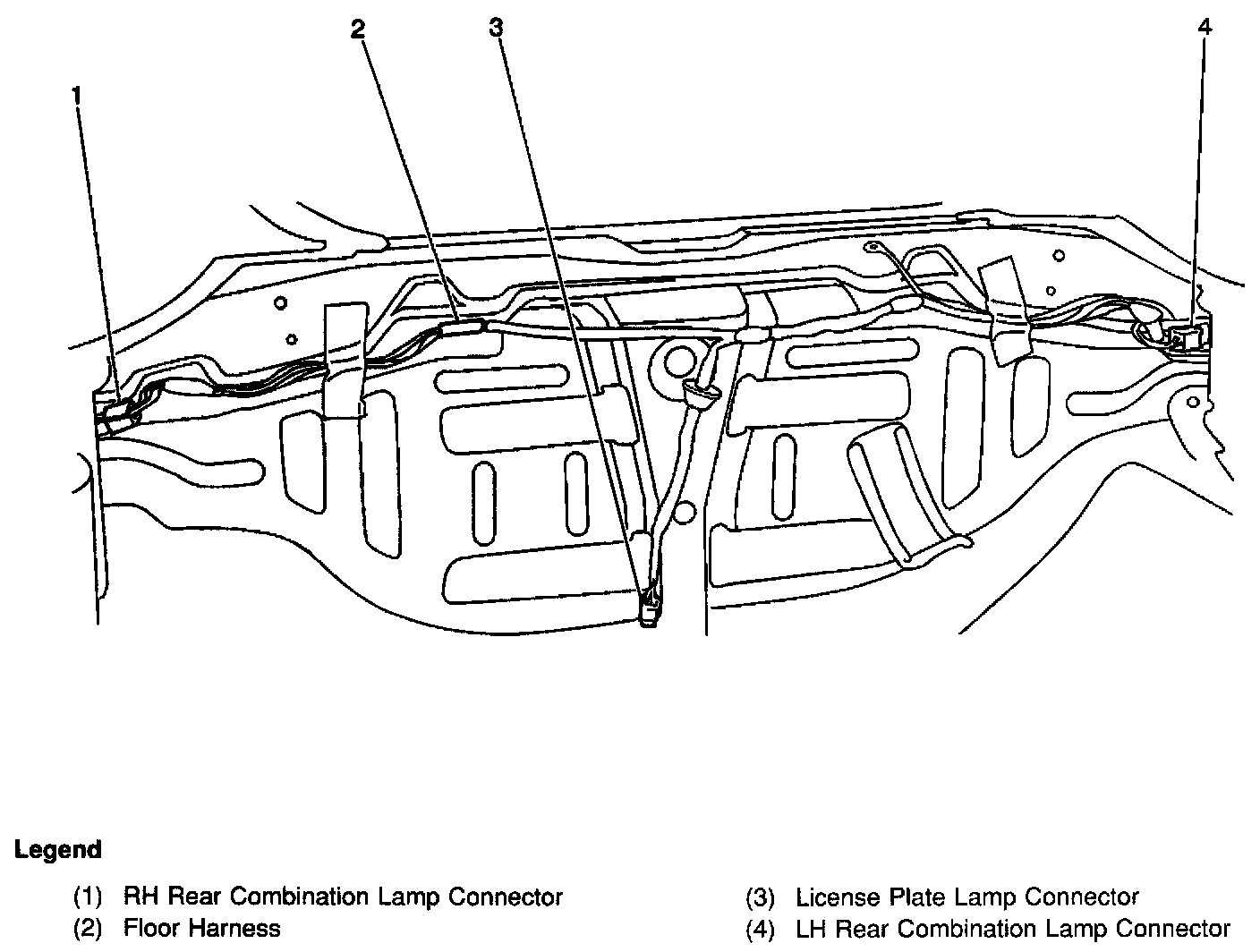

Floor Harness

Locations View:




Location Views:




Location Views:




Locations View:




Locations View:
