Pressure Plate Runout and Wear

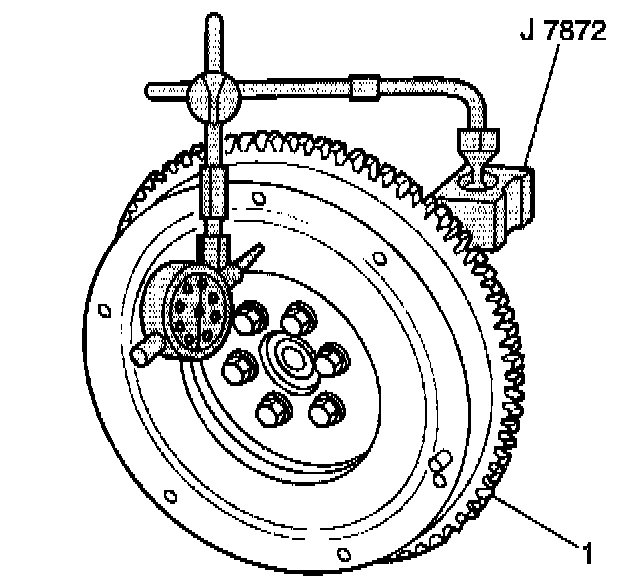

^ Use J7872 a flywheel wrench in order to slowly turn the flywheel (1). Use the in order to measure the flywheel for runout. Resurface or replace the flywheel if the flywheel runout exceeds 0.1 mm (0.004 inch).
^ If the flywheel needs resurfacing, remove the flywheel bolts and the flywheel from the crankshaft. Observe the flywheel position on the crankshaft.

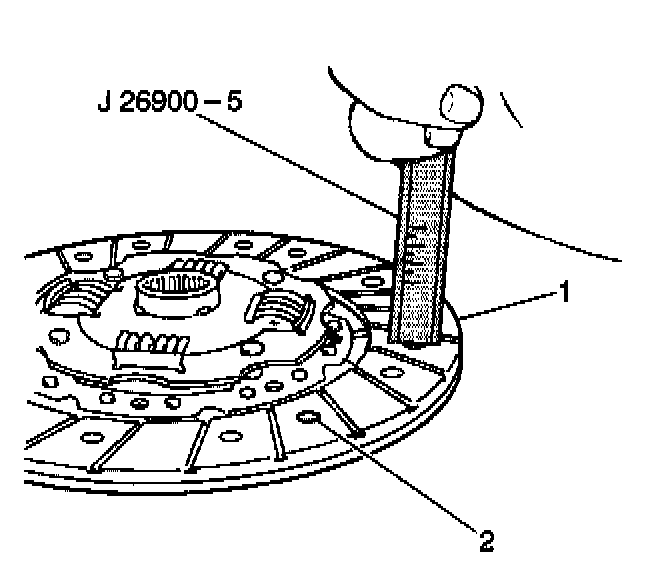

^ Use J26900-5 in order to measure the clutch disc (1) wear. Measure the depth of each rivet head depression (2).
Measurement
^ 1.2 mm (0.05 inch) for the 1.0-liter engine
^ 1.5 mm (0.06 inch) for the 1.3-liter engine

^ Replace the clutch disc if the clutch rivet depth is less than 0.5 mm (0.02 inch).





^ Use J7872 in order to measure the clutch disc (1) for runout. Place the clutch disc between the 2 horizontal arbors. Slowly turn the clutch disc while measuring runout. Replace the clutch disc if the clutch disc runout exceeds 0.8 mm (0.031 inch).
