Two-Door

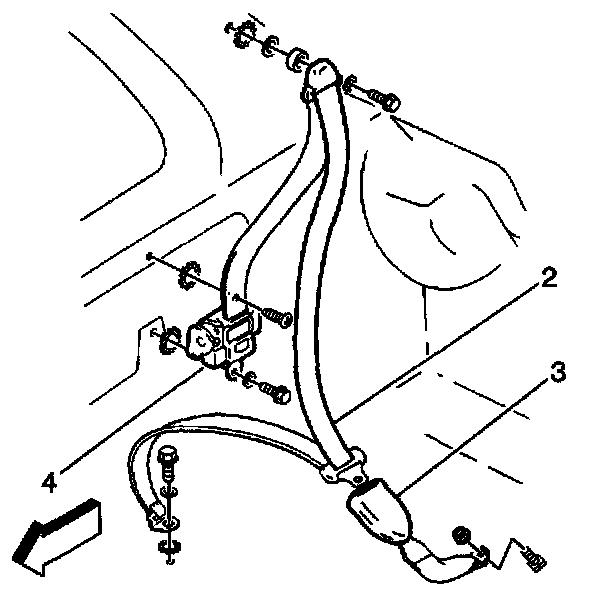

REMOVAL PROCEDURE
1. Remove the rear seat cushion.
2. Remove the lower anchor bolt that retains the seat belt (2).
3. Remove the following components that retain the guide loop of the rear seat belt:
^ The plastic cover
^ The anchor bolt
^ The washers
^ The spacer
4. Disconnect the rear speaker electrical connector, if equipped.
5. Remove the plastic trim cover from the rear seat belt retractor (4).
6. Remove the mounting bolt and the rear seat belt retractor (4).
7. Remove the 2 plastic snaps that retain the carpet to the floor at the rear of the rear compartment.
8. Complete the following steps in order to access the anchor bolt that retains the rear seat belt buckle (3):
8.1. Lift the carpet.
8.2. Remove the spare tire cover.
9. Remove the anchor bolt, and remove the rear seat belt buckle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Install the rear seat belt buckle (3) to the vehicle. Secure the buckle with the anchor bolt.

Tighten
Tighten the seat belt buckle bolt to 45 N.m (33 lb ft).

2. Install the spare tire cover, and position the rear compartment carpet into place. Secure the carpet with the two plastic snaps.
3. Install the rear seat belt retractor (4) to the vehicle. Secure the retractor with the mounting bolt.

Tighten
Tighten the bolt to 45 N.m (33 lb ft).

4. Install the plastic trim cover to the rear seat belt retractor.
5. Connect the rear speaker electrical connector, it equipped.
6. Install the guide loop of the rear seat belt to the vehicle. Secure the guide loop with the following fasteners:
- The anchor bolt
- The washers
- The spacer
- The plastic cover

Tighten
Tighten the guide loop anchor bolt to 45 N.m (33 lb ft).

7. Install the rear seat belt (2) to the vehicle. Secure the belt with the lower anchor bolt.

Tighten
Tighten the rear seat belt bolt to 45 N.m (33 N.m ft).

8. Install the rear seat cushion.
