Horn: Service and Repair

REMOVAL PROCEDURE

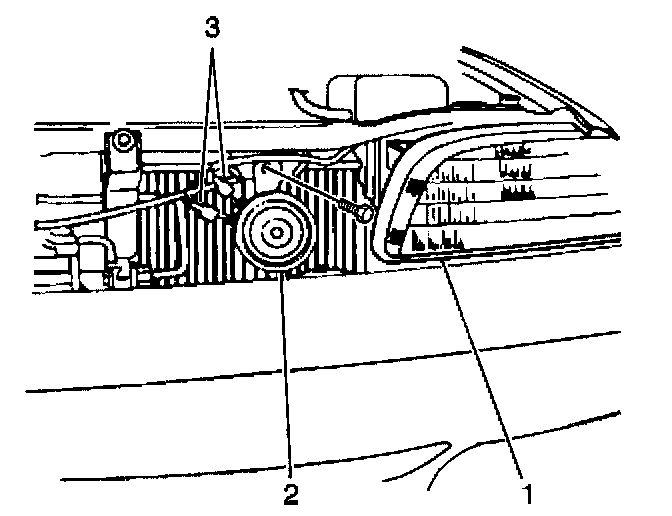

1. Disconnect the horn electrical connectors (3).
2. Remove the following components from the vehicle:
^ The horn mounting bolt
^ The horn (2)

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precations.

1. Install the horn (2) to the vehicle. Secure the horn with the mounting bolt.

Tighten
Tighten the horn mounting bolt to 10 N.m (89 lb in).

2. Connect the horn electrical connectors (3).
