2 Door

REMOVAL PROCEDURE

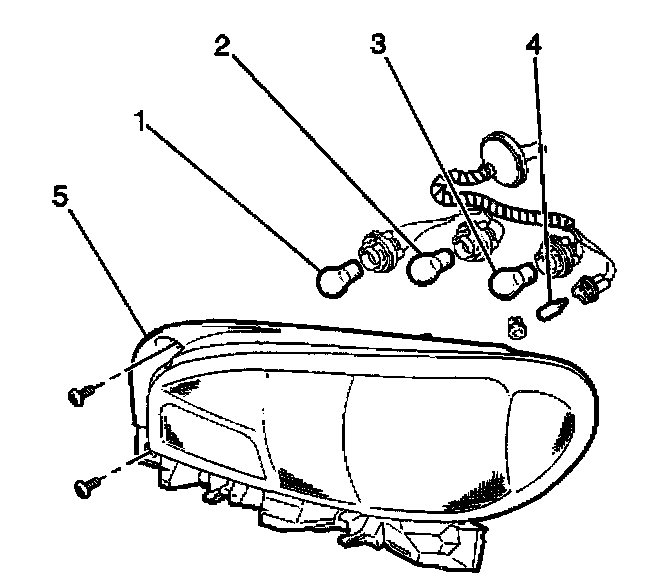

1. Remove the 2 screws which secure the tail lamp (5).
2. Pull the tail lamp (5) upward and rearward in order to remove the lamp from the vehicle.
3. Remove the backup lamp bulb socket from the tail lamp (5).
4. Remove the backup lamp bulb (1) from the socket.

INSTALLATION PROCEDURE
1. Install the backup lamp bulb (1) to the backup lamp bulb socket.
2. Install the backup lamp bulb socket to the tail lamp (5).
3. Install the tail lamp (5) to the vehicle. Secure the lamp (5) with 2 screws.
