Tachometer: Service and Repair

REMOVAL PROCEDURE




1. Remove the instrument panel cluster.

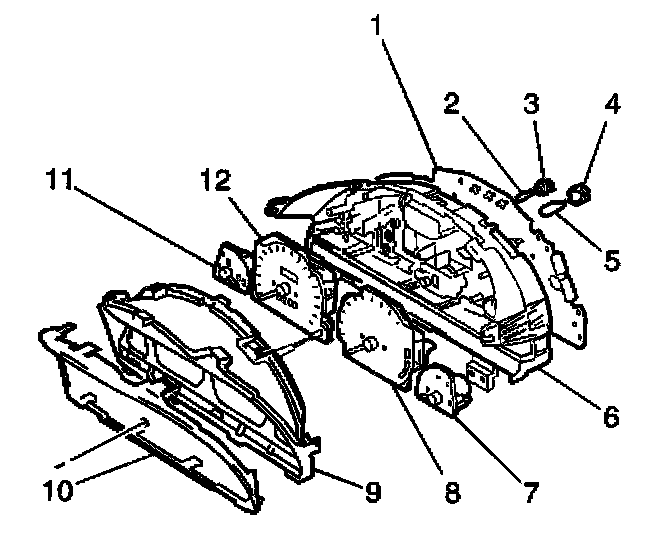

2. Push on the tabs in order to remove the cluster lens (10) and the bezel (9) from the cluster housing (6).




3. Remove the 3 screws (1) that retain the tachometer.




4. Remove the tachometer (8) from the cluster housing (6).

INSTALLATION PROCEDURE




1. Install the tachometer (8) to the cluster housing (6).




2. Secure the tachometer with the 3 screws (1).




3. Install the cluster lens (10) and the bezel (9) to the cluster housing (6).
4. Install the instrument panel cluster.
