HVAC Compressor/Condenser Fan Control Schematics
HVAC Compressor/Condenser Fan Control Schematics

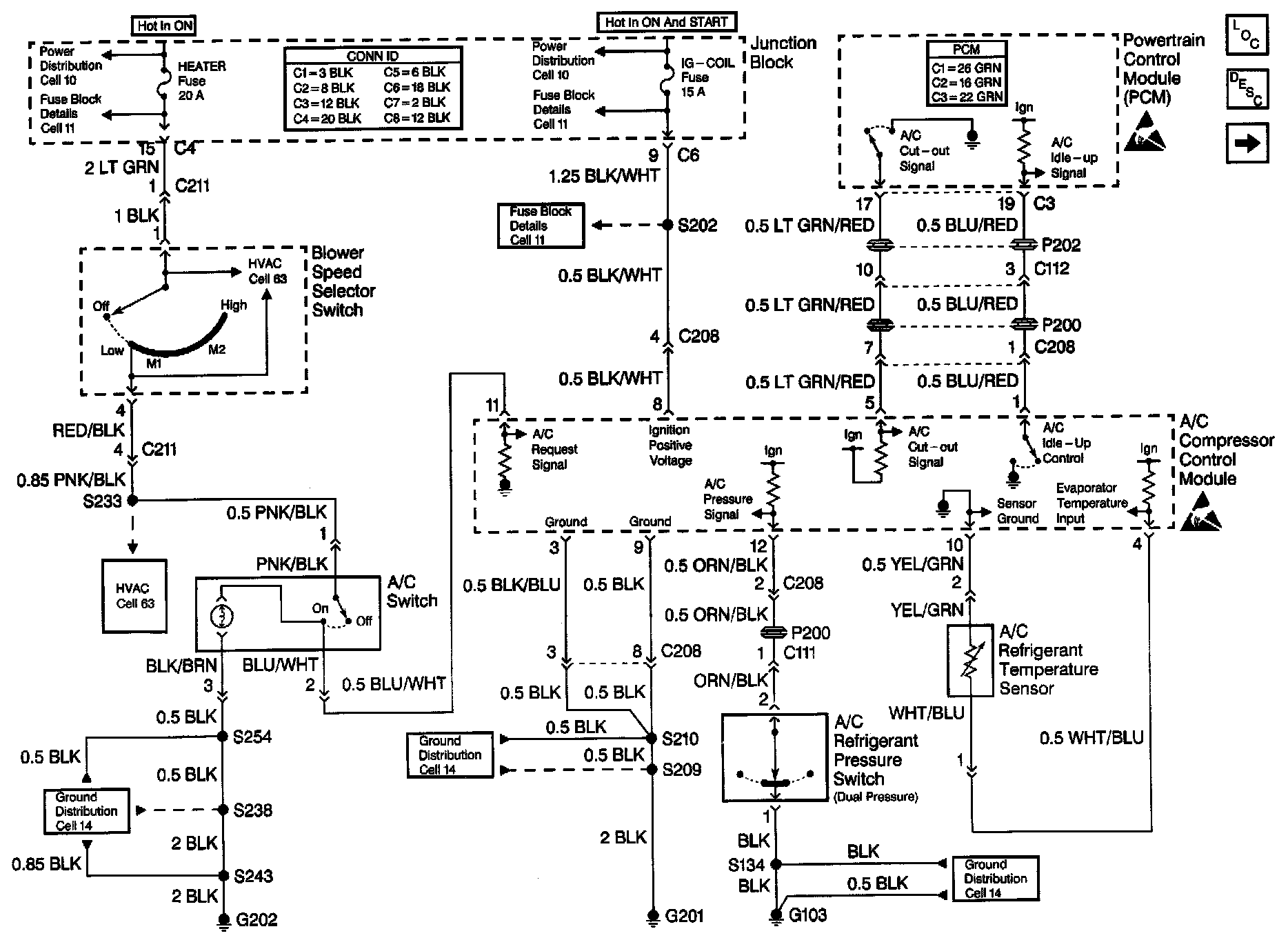

HVAC Compressor/Condensor Fan Control Schematics:
