51. Timing Belt Tensioner Installation

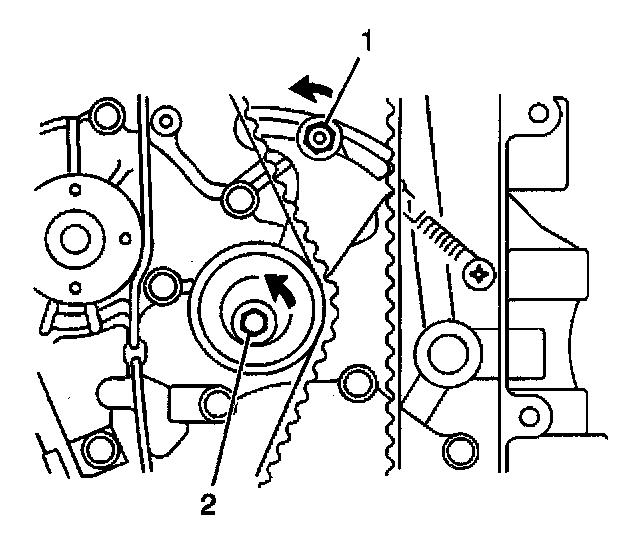

1. Install the tensioner plate to the timing belt tensioner. Insert the tensioner plate lug (1) into the timing belt tensioner hole (2).





2. Install the timing belt tensioner and the tensioner plate to the cylinder block. Secure the tensioner and tensioner plate with one bolt (2) and one stud (1). Do not tighten fully.
