48. Valve Lifter Installation

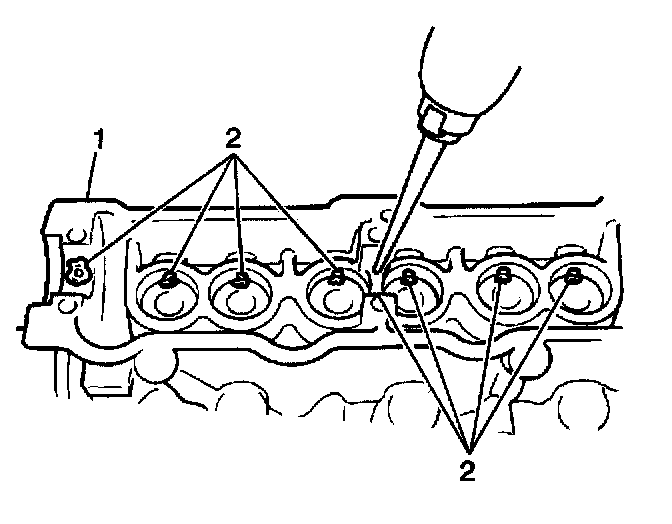

1. Pour engine oil through the camshaft journal holes (2).
2. Inspect that the engine oil comes out from the oil holes in the HVL adjuster bores.





3. Apply engine oil around the HVL adjusters.
4. Install the HVL adjusters (1) to the cylinder head.
