29. Cylinder Head Disassemble

^ Tools Required
- J 8062 Valve Spring Compressor
- J 37979 Valve Spring Compressor Adapter

Important: Keep the valve train components together, and identify the components in order to correctly install the components in the original position.

Caution: Wear safety glasses in order to avoid eye damage.

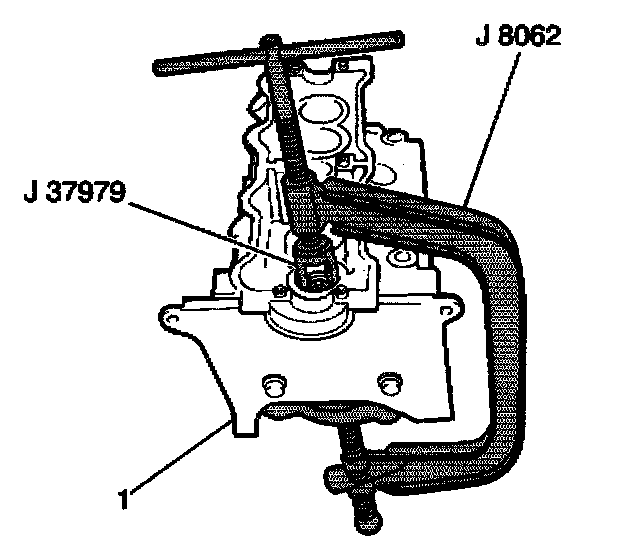

1. Compress the valve spring. Use the J 8062.

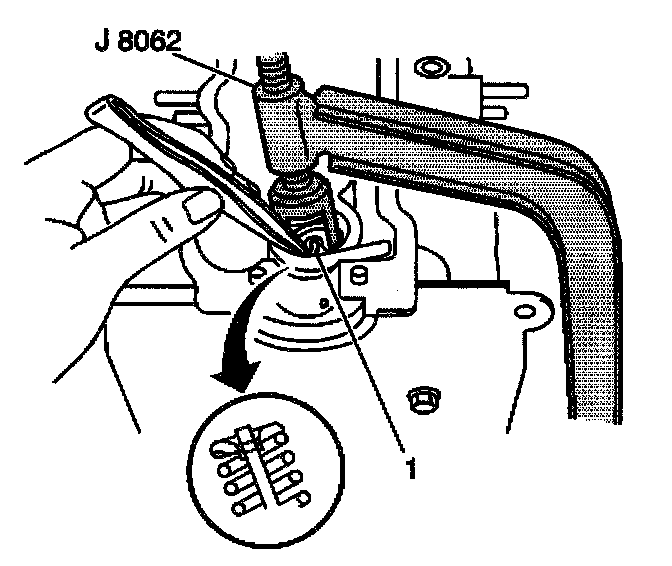

2. Remove the valve keepers (1).
3. Slowly release the J 8062 from the valve spring assembly.
4. Remove the retainer.
5. Remove the spring.

Notice: Do not damage the valve guide. Remove any burrs that have formed at the key groove by chamfering the valve stem with an oil stone or a file.

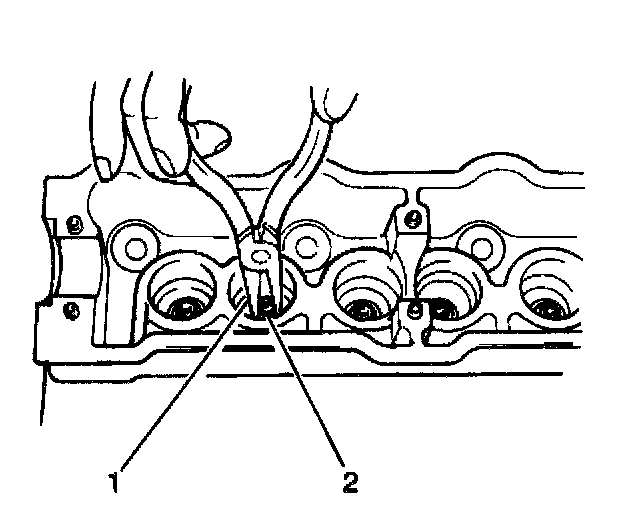

6. Remove the valve seal (1).
7. Remove the spring seats.
8. Remove the valve.
9. Remove the remaining valves.
