15. Oil Pump Removal

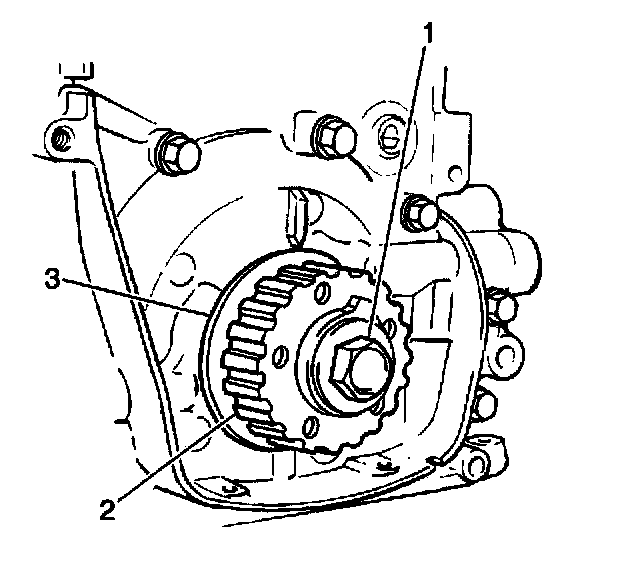

1. Remove the crankshaft timing gear bolt (1).
2. Remove the crankshaft timing gear (2).
3. Remove the 7 bolts and the oil pump housing (5) from the cylinder block.
4. Remove the rotor plate pins from the oil pump (5).
