10. Valve Rocker Arm Cover Removal

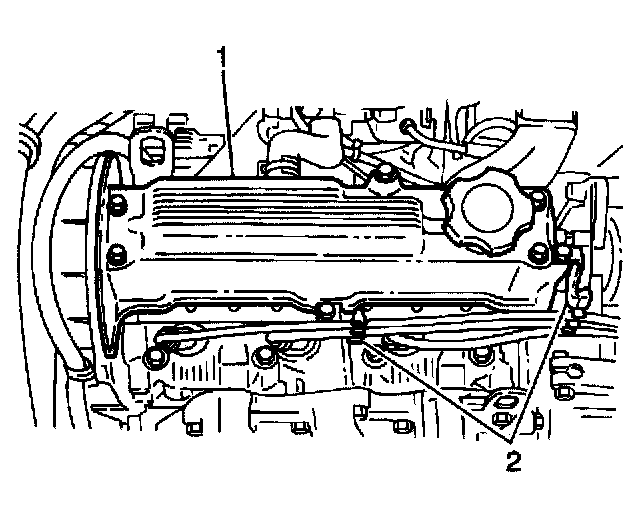

1. Remove the clamps (2) that retain the spark plug wires from the valve rocker-arm cover.
2. Remove the valve rocker-arm cover nuts and the seal washers.
3. Remove the valve rocker-arm cover (1) from the cylinder head.
4. Remove the valve rocker-arm cover gasket from the valve rocker-arm cover.
