Camshaft Replacement
Removal ProcedureTools Required
- J 26900-20utside Micrometer
Caution: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Remove the Valve Rocker Arm Cover. Refer to Valve Rocker Arm Cover Replacement.
3. Remove the distributor. Refer to Distributor Replacement in Powertrain Management.
4. Remove the distributor housing.
5. Raise and support the vehicle. Refer to Vehicle Lifting.
6. Remove the timing belt. Refer to Timing Belt Replacement.
Important: Use a suitable holding tool to keep the camshaft gear from turning while removing the retaining bolt.
7. Remove the camshaft timing gear.
8. Ensure that the crankshaft (4) is in the correct position before proceeding.
9. Remove the six bolts and the three camshaft housings (1,2,3) from the cylinder head.
10. Remove the camshaft from the cylinder head.
11. Remove the six Hydraulic Valve Lash (HVL) adjusters from the cylinder head.
Important:
^ Never disassemble the hydraulic valve lash (HVL) adjuster.
^ Do not apply force to the body of the adjuster or the oil in the high pressure chamber.
12. Submerge the removed adjusters in clean engine oil until reinstallation. If the adjusters are left in the air, place with the adjuster bodies facing down. Do not place on the side or with the adjuster bodies facing up.

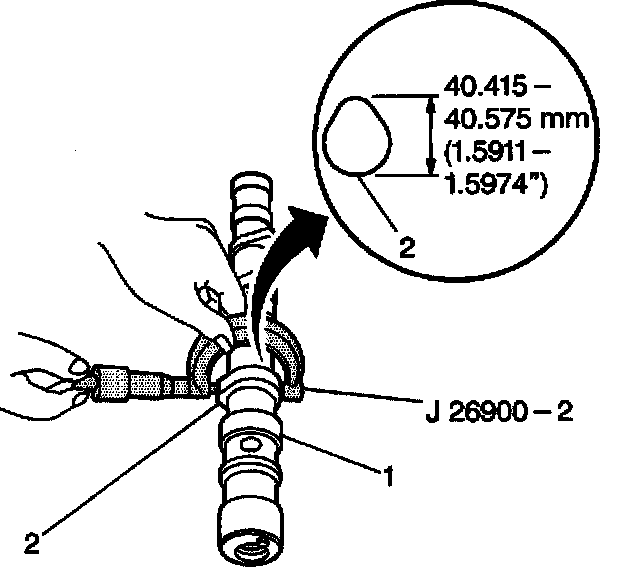

13. Use a J 26900-2 in order to inspect for camshaft wear by measuring the camshaft lobe height (2).
^ Standard camshaft lobe height is 40.415 to 40.575 mm (1.5911 to 1.5974 inch).
^ Minimum camshaft lobe height is 40.315 mm (1.5872 inch)
14. Replace the camshaft (1) if the camshaft lobe height is less than the minimum limit.
Installation Procedure
1. Pour engine oil through the camshaft journal holes (2).
2. Inspect that the engine oil comes out from the oil holes in the HVL adjuster bores.
3. Apply engine oil around the HVL adjuster.
4. Install the HVL adjuster (1) to the cylinder head.
5. Apply engine oil to the camshaft journal and around all of the cams.

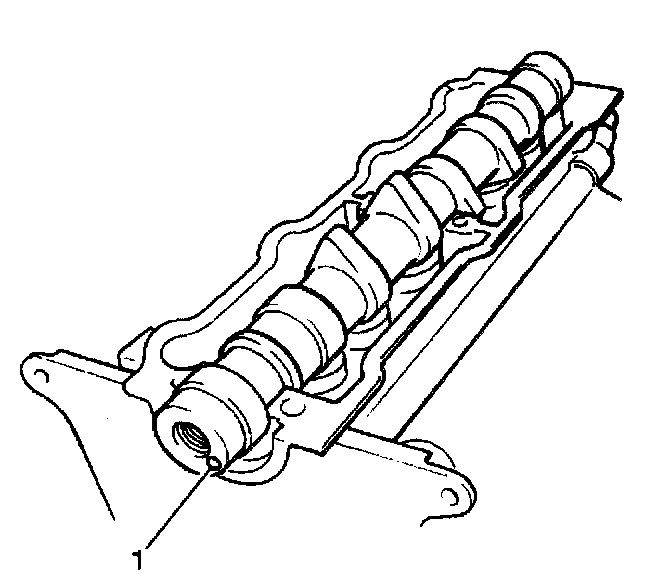

6. Install the camshaft into the cylinder head so that the camshaft timing gear pin hole (1) in the camshaft is at the lower position.
7. Apply engine oil to the sliding surface of each housing against the camshaft journal.

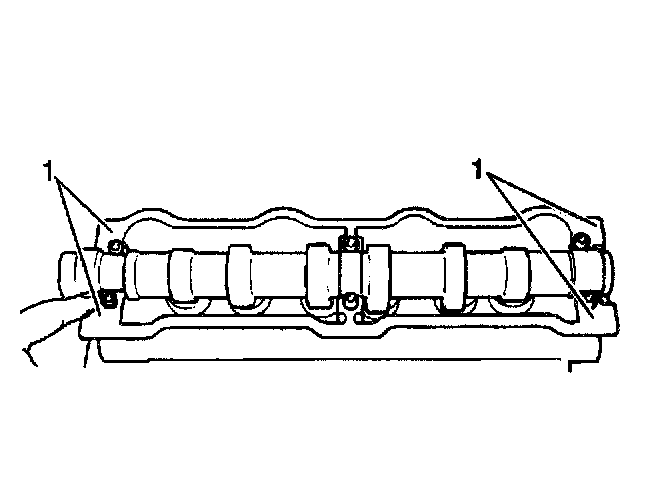

8. Apply GM P/N 12346240 or equivalent, to the mating surface of the No. 1 and No. 3 housings (1) which will mate with the cylinder head.
Important: The camshaft housing No. 1 retains the camshaft in the proper position as to the thrust direction. Install the housing No. 1 to the journal No. 1 first. Do not tighten fully.

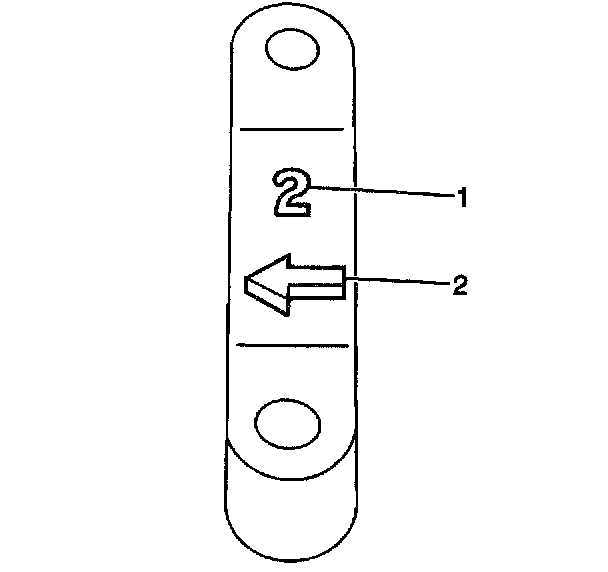

9. Install the camshaft housing No.1 (1) to the camshaft and the cylinder head with the arrow on the camshaft housing (2) facing the timing belt side.
Important: Apply engine oil to the housing bolts before securing the camshaft housings to the camshaft journals.
10. Install the two remaining camshaft housings (2, 3) to the journals of the camshaft.
Notice: Refer to fastener Notice in Service Precautions.
11. Secure the camshaft housings with the housing bolts.
Gradually tighten the housing bolts in sequence, repeat the tightening process three or four times until they are tightened to 11 Nm (97 inch lbs.).
12. Apply engine oil to the camshaft oil seal lip.
13. Press-fit the camshaft oil seal until the oil seal surface becomes flush with the housing surface.
14. Install the dowel pin to the camshaft timing gear pin hole (1).
15. Install the camshaft timing gear.
Important: Use a suitable holding tool to keep the camshaft gear from turning while installing the retaining bolt.
16. Secure the camshaft timing gear with the camshaft timing gear bolt.
Tighten the camshaft timing gear bolt to 60 Nm (44 ft. lbs.).
Notice: Be sure not to block the oil drain hole-located at the front cylinder head opening-with the silicone sealant. This could cause excessive oil pressure within the cylinder head, resulting in a possible oil leak.
17. Apply a small amount of GM P/N 12346240 or equivalent, to the corners of the cylinder head gasket.
18. Install the new cylinder head cover gasket to the cylinder head cover.
19. Install the cylinder head cover to the cylinder head and secure the cylinder head cover with new seal washers and cover nuts.
Tighten the cylinder head cover nuts to 5 Nm (44 inch lbs.).
20. Install the distributor case and distributor to the cylinder head. Refer to Distributor Replacement in Powertrain Management.
21. Install the timing belt. Refer to Timing Belt Replacement.
22. Connect the negative battery cable.
Notice: Do not turn the camshaft or start the engine (i.e., the valves should not be operated) for about a half an hour after reinstalling the HVL adjusters and the camshaft. Since it takes time for the HVL adjusters to settle in place, operating the engine within a half an hour after their installation may cause interference to occur between the valves and the piston.
23. When the engine is started, if air is trapped in the HVL adjuster, the valve may make a tapping sound when the engine is operated after the HVL adjuster is installed. In such a case, run the engine slightly above the idle speed as necessary until the air is purged and the tapping sound ceases. Should the tapping noise not cease within a half an hour, one or more HVL adjusters could be faulty. If the faulty adjuster can not be located by ear, perform the following steps:
^ Turn the ignition switch to the OFF position.
^ Remove the cylinder head cover.
^ Inspect that the cam lobe is not on the HVL adjuster to be checked.

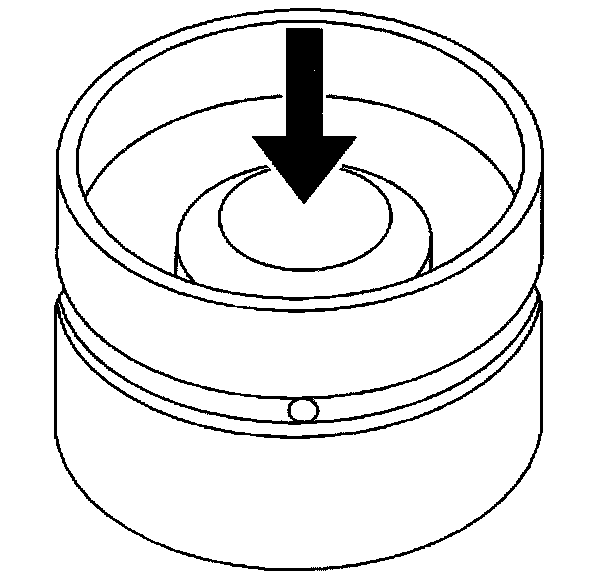

^ Push the HVL adjuster downward by hand (with less than 15 kg or 33 lbs. force).
^ Inspect if there is clearance between the cam and the adjuster. If there is clearance between the cam and the adjuster, the adjuster is defective and must be replaced.
24. Listen for tapping noises from the engine.
25. If no noises are heard, adjust the ignition timing.
26. Turn the ignition switch to the OFF position.
