Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Cooling Fan Controls and A/C Controls

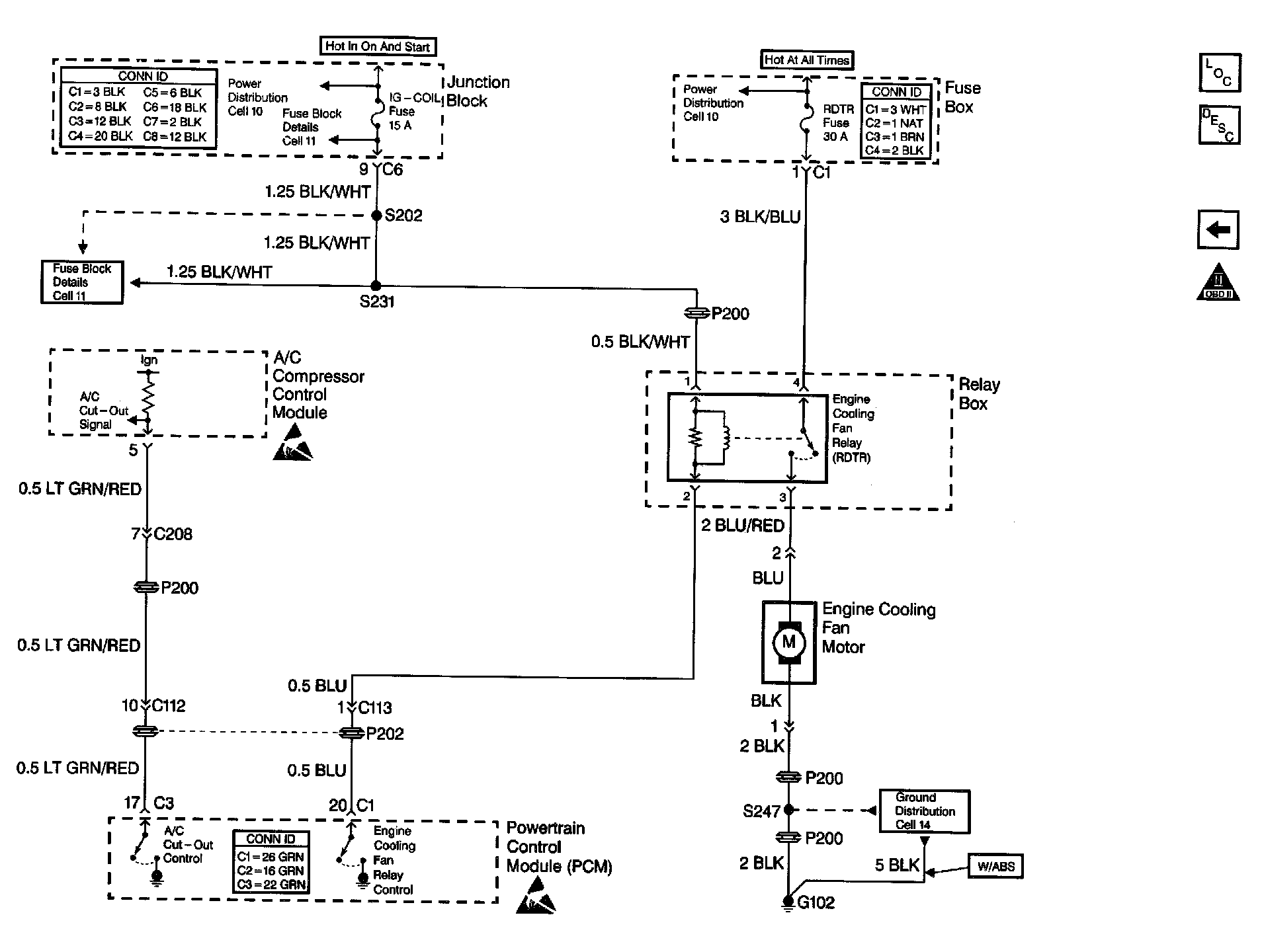

Cooling Fan Controls and A/C Controls

Engine Controls Schematics: Cooling Fan Controls And A/C Controls:
