Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Light Switch and Ignition Key Warning Switch

Light Switch and Ignition Key Warning Switch

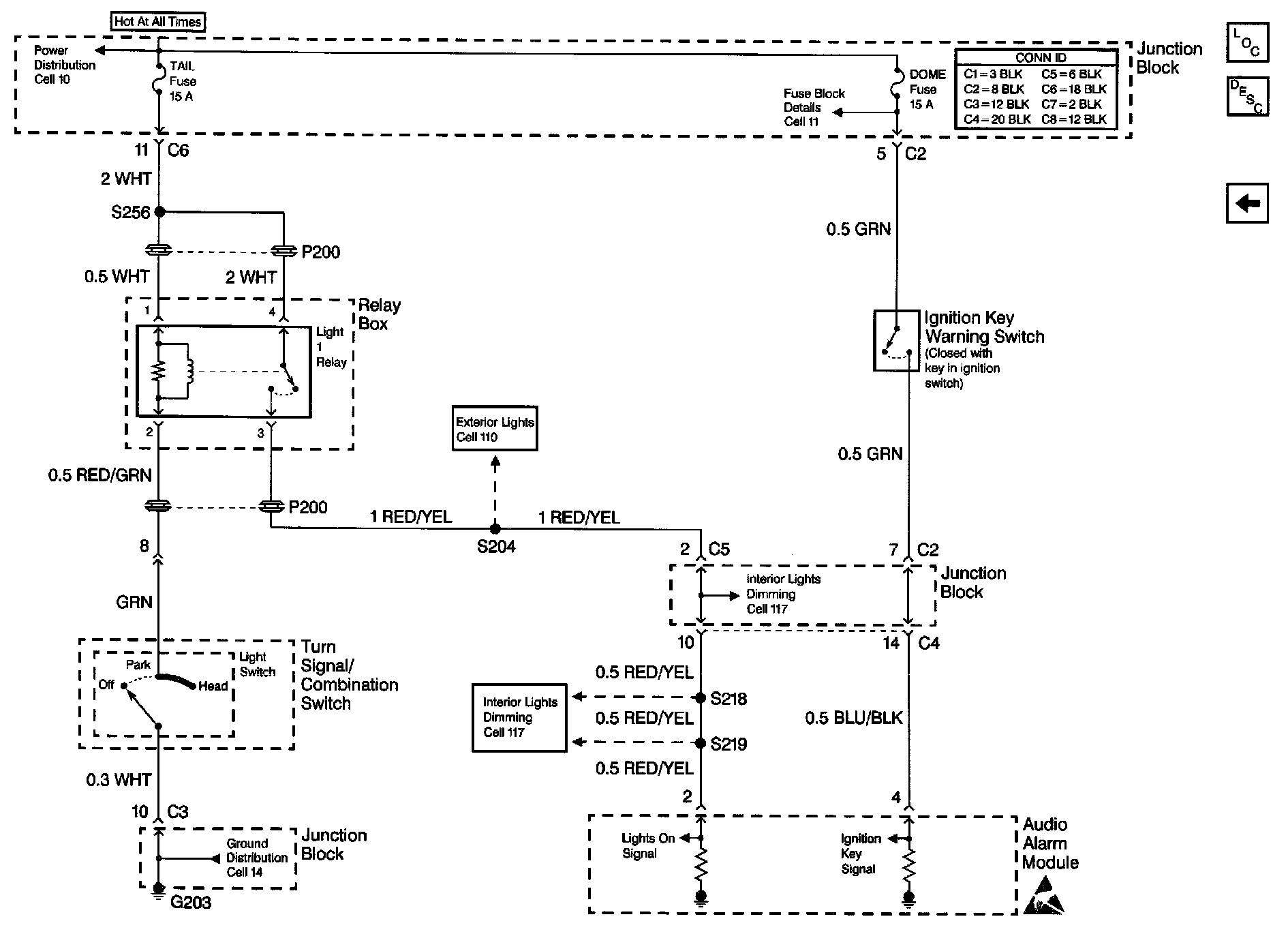

Audible Warning Schematics: Light Switch And Ignition Key Warning Switch:
