Firefly (CANADA) L3-1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block C5
Junction Block C5

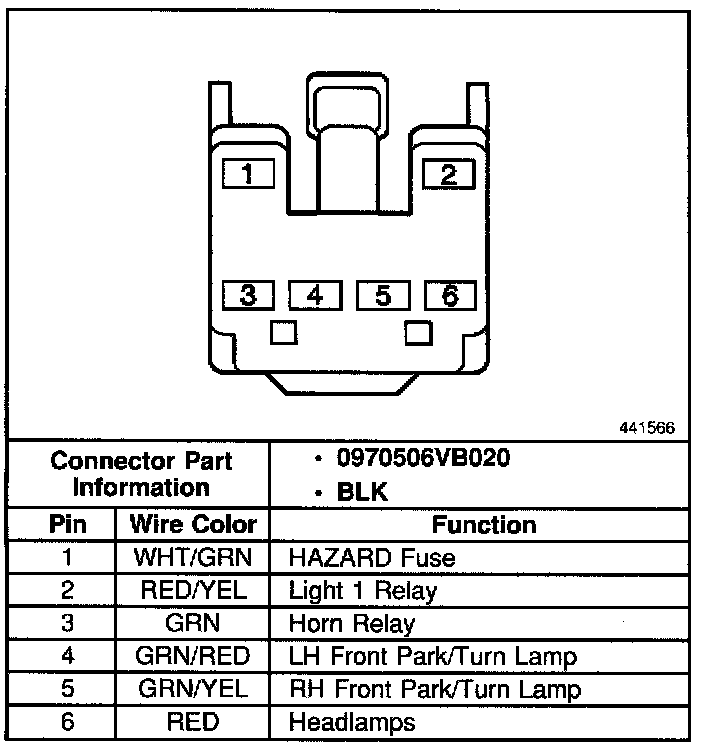

Junction Block - C5:
