Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Light Switch >> Stoplamp Switch (Manual Transaxle)

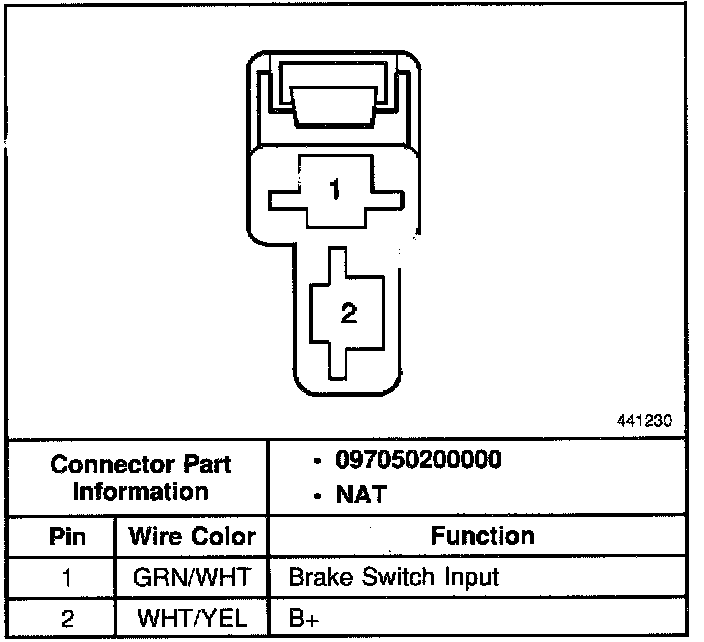

Stoplamp Switch (Manual Transaxle)

Stoplamp Switch (Manual Transaxle):
