Rear Compartment Lid Weatherstrip Replacement (2-Door)

Rear Compartment Lid Weatherstrip Replacement (2-Door)

Removal Procedure

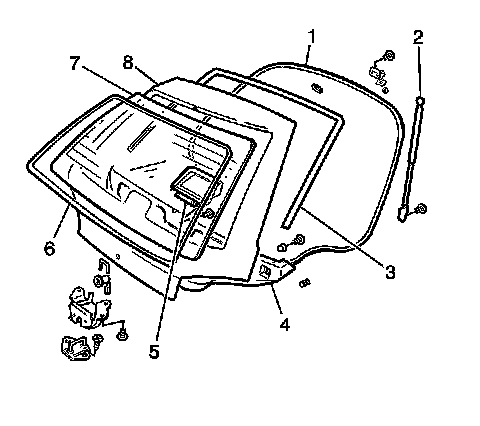

1. Pull the weatherstrip (1) from the opening pinch-weld flange.
2. Remove the weatherstrip (1) from the vehicle.

Installation Procedure




1. Apply a thin bead of weatherstrip adhesive GM P/N 12345096, or equivalent, around the perimeter of the weather-strip opening pinch-weld flange.
2. Install the weatherstrip (1) to the opening pinch-weld flange.
3. Press the weatherstrip (1) firmly into place.
