Fuel Door: Service and Repair

Fuel Tank Filler Door Replacement

Removal Procedure

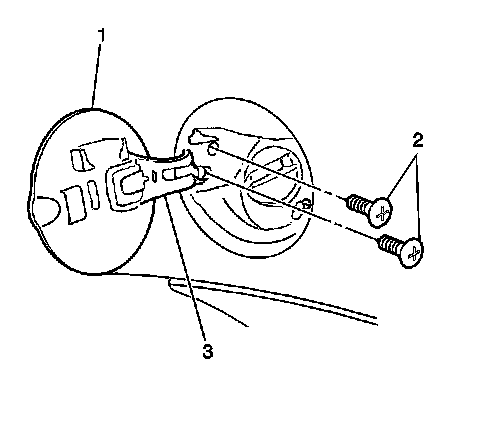

Remove the following components from the vehicle:

* 2 screws (2)
* The fuel filler door (1) and hinge (3) assembly

Installation Procedure





Install the fuel filler door (1) and hinge (3) assembly to the vehicle. Secure the assembly with 2 screws (2).
