Rear Bumper Fascia Outer Support Replacement

Rear Bumper Fascia Outer Support Replacement

Removal Procedure

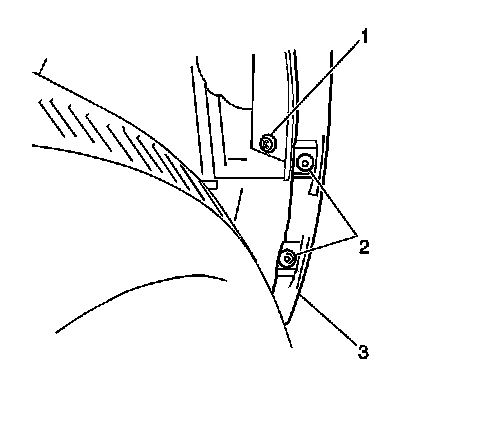

1. Remove the 3 screws (1,2) which secure the rear bumper fascia outer support.

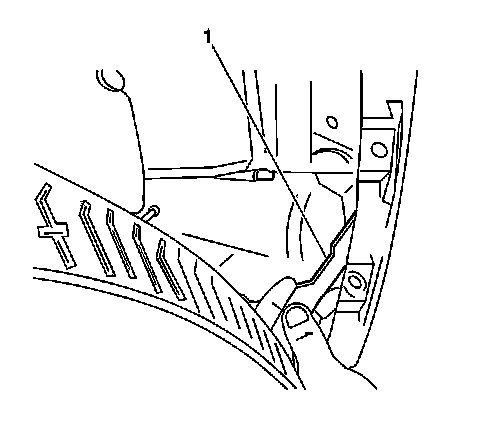

2. Remove the rear bumper fascia outer support (1) from the vehicle.

Installation Procedure





Install the rear bumper fascia outer support to the rear bumper fascia. Secure the support with the 3 screws (1,2).
