Body Control Module and Switch Inputs

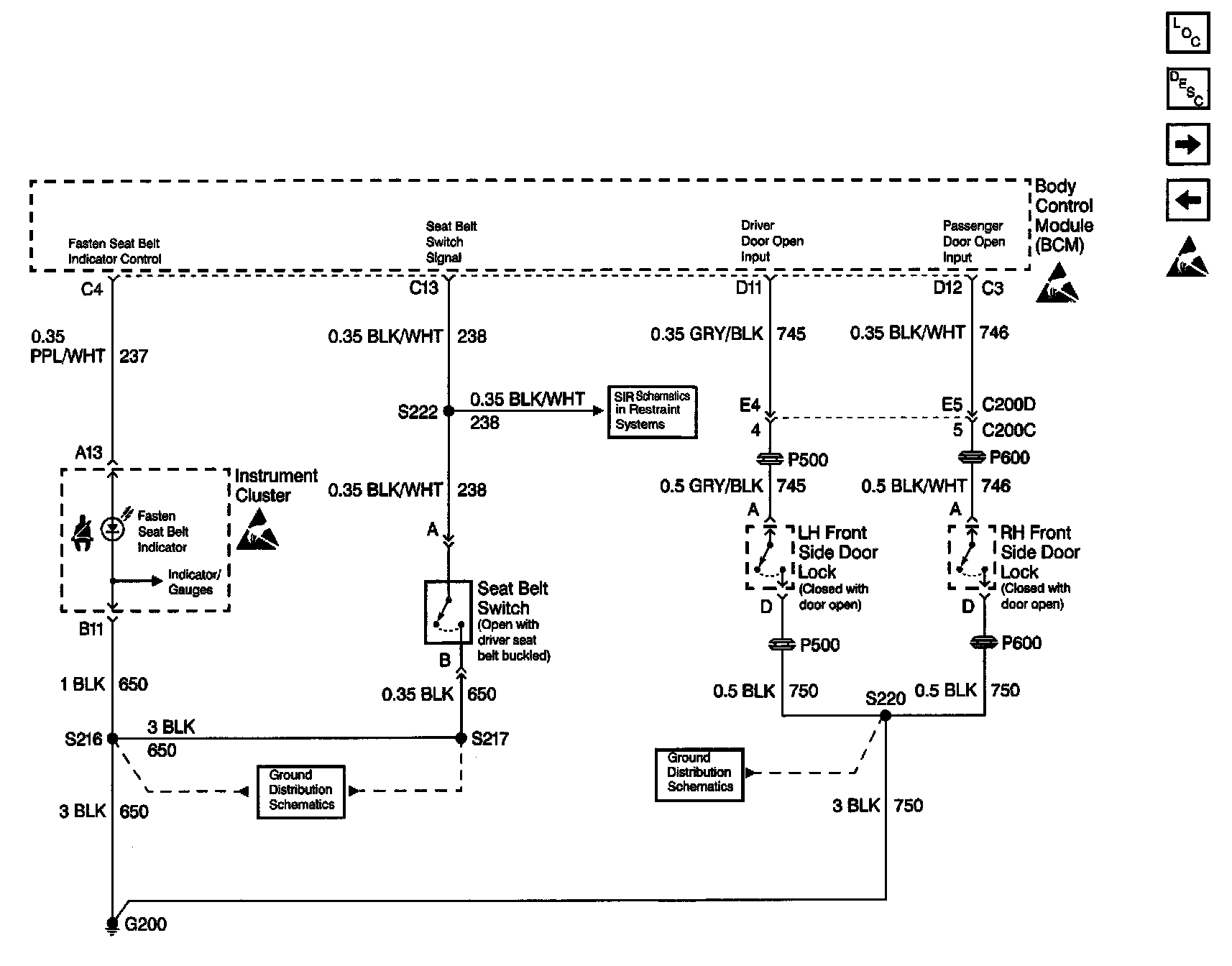

Body Control Module Schematics: Body Control Module, And Switch Inputs:
