Expansion Block/Orifice Tube: Service and Repair

EXPANSION (ORIFICE) TUBE FILTER REPLACEMENT

REMOVAL PROCEDURE




1. Recover the refrigerant.
2. Remove the air conditioning (A/C) evaporator.

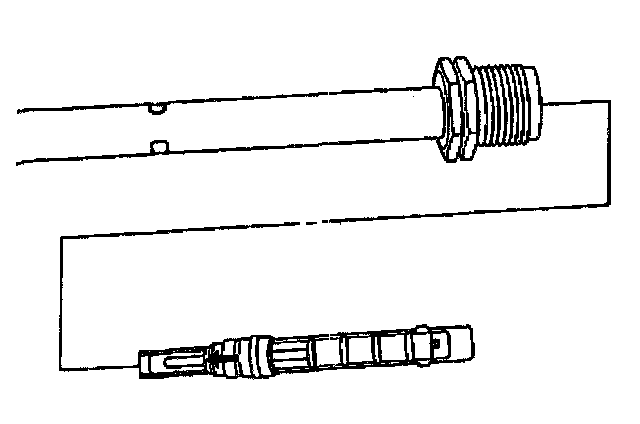

3. Remove the orifice from the A/C evaporator tube.

INSTALLATION PROCEDURE

IMPORTANT: Install the long screen inlet end toward the condenser.




1. Install the orifice in the A/C evaporator tube.
2. Install the A/C evaporator.
3. Recharge the A/C system.
4. Leak test the fitting for leaks.
