Engine

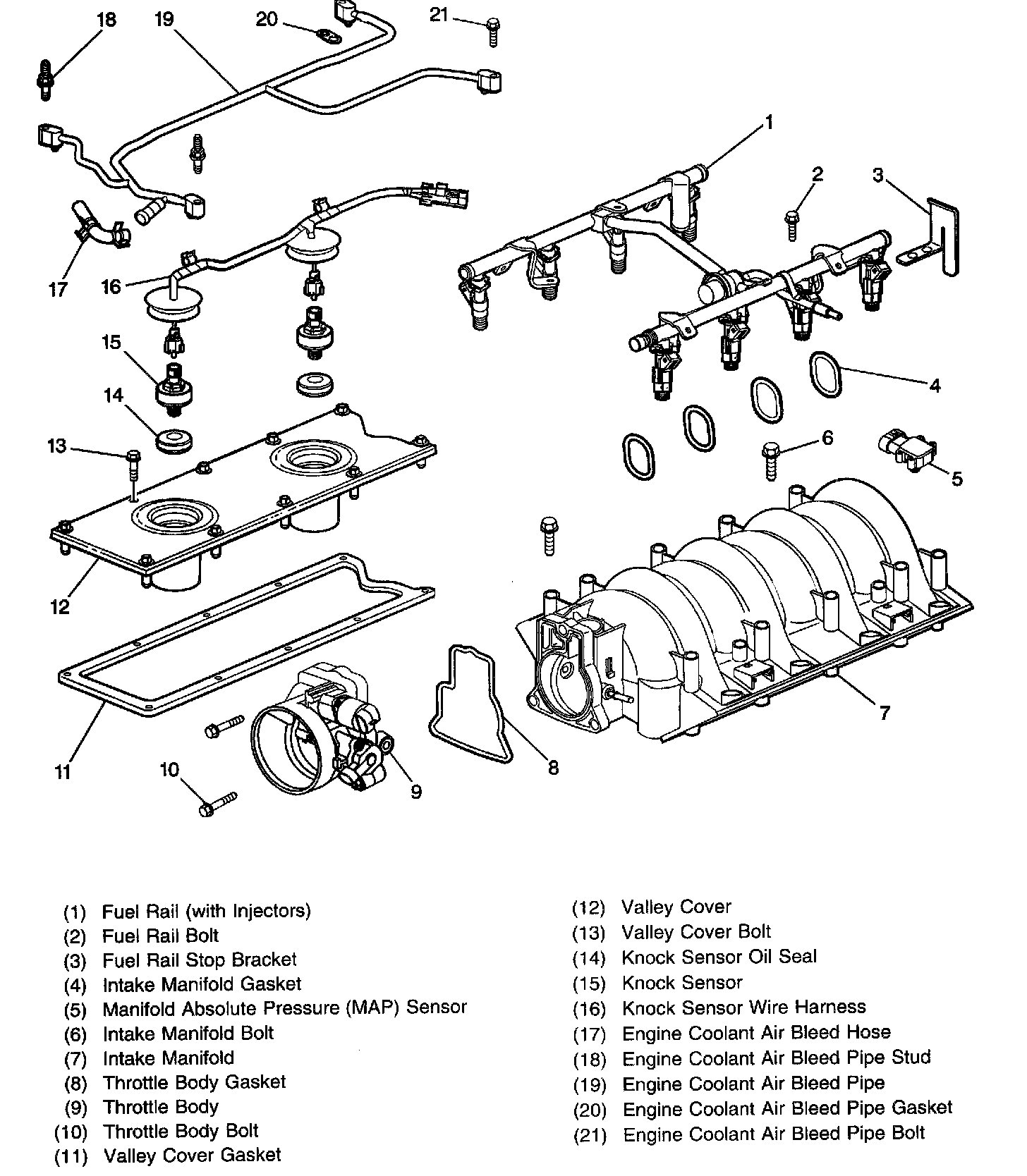

Intake Manifold/Upper Engine

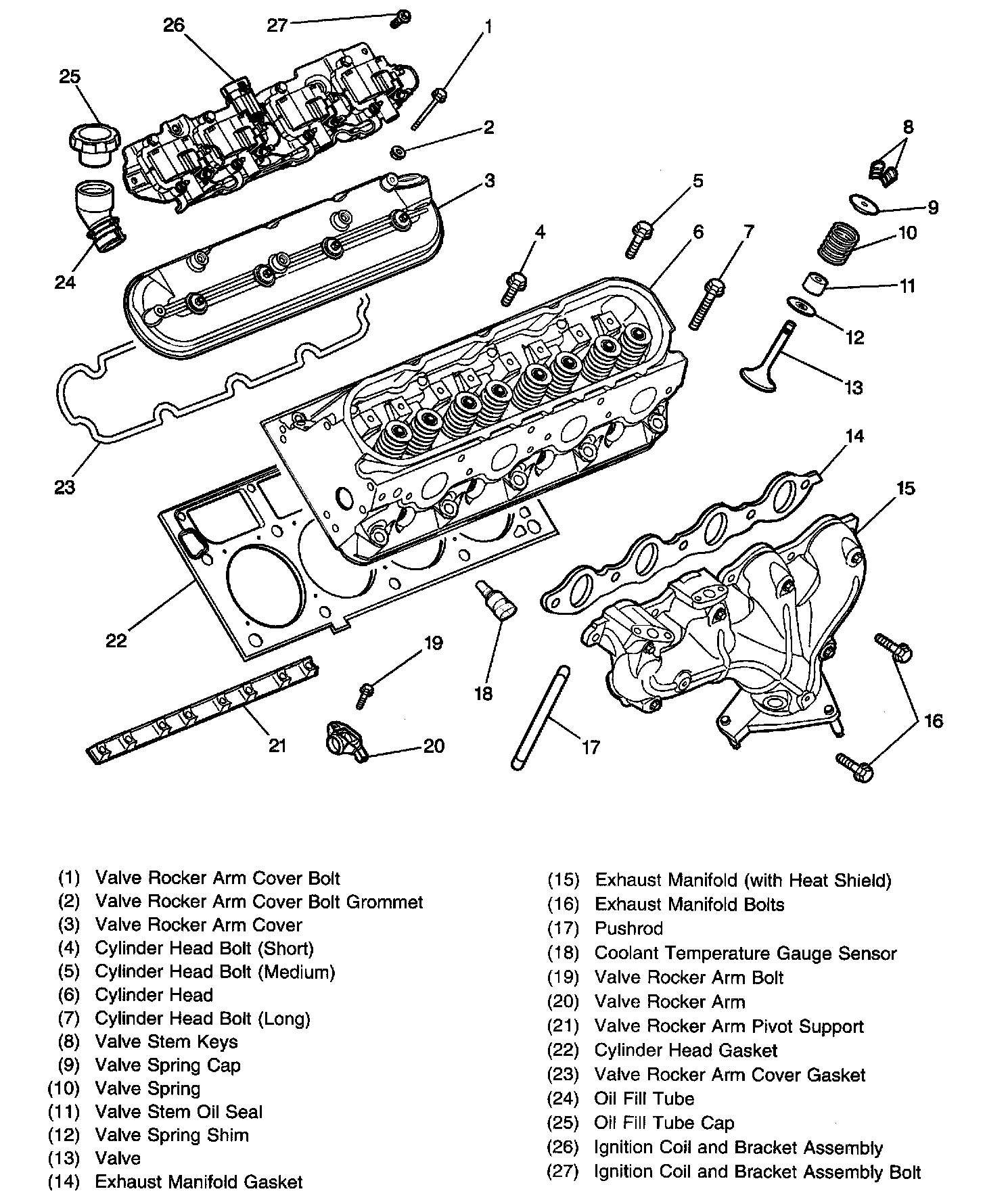

Cylinder Head/Upper Engine

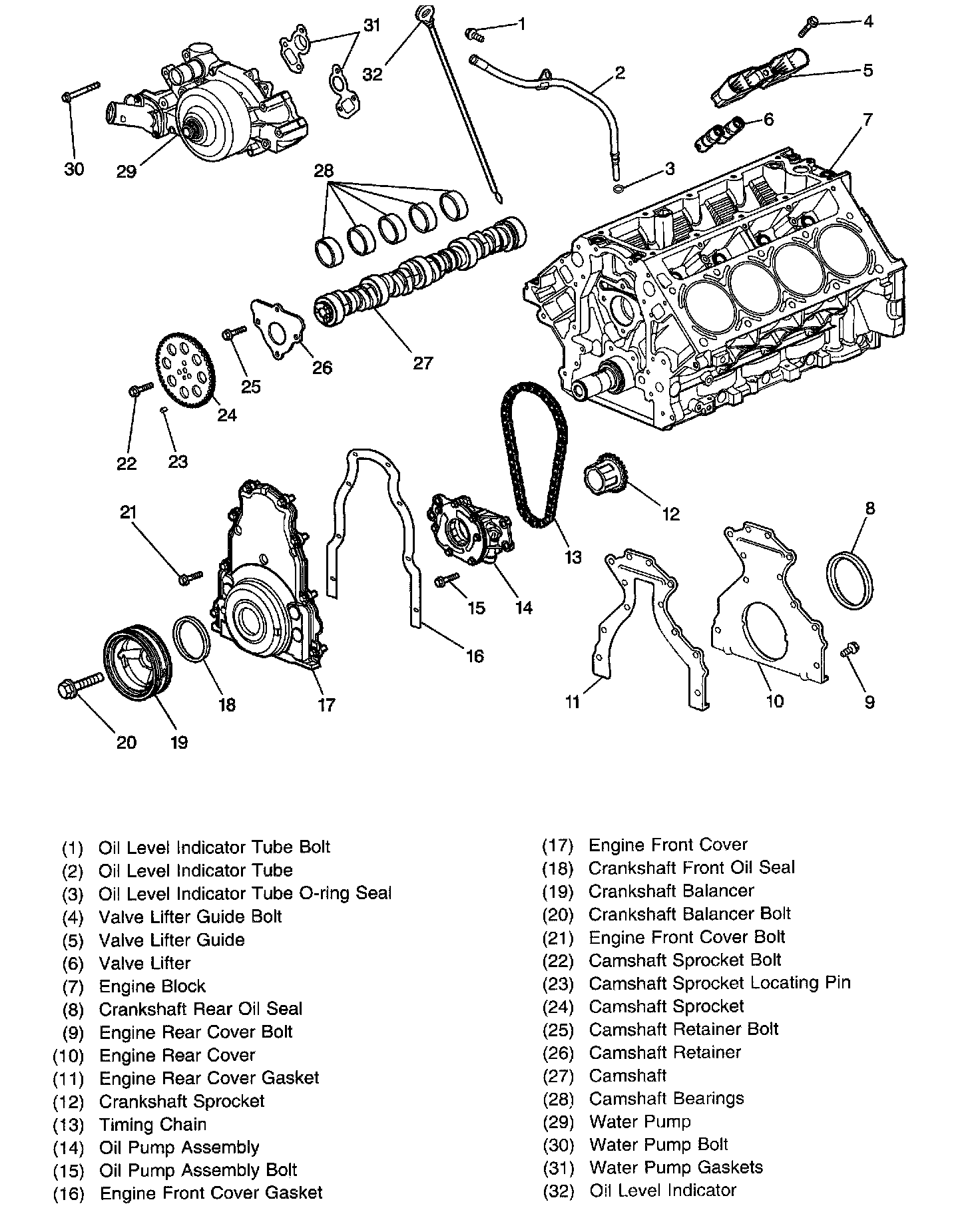

Lower Front of Engine

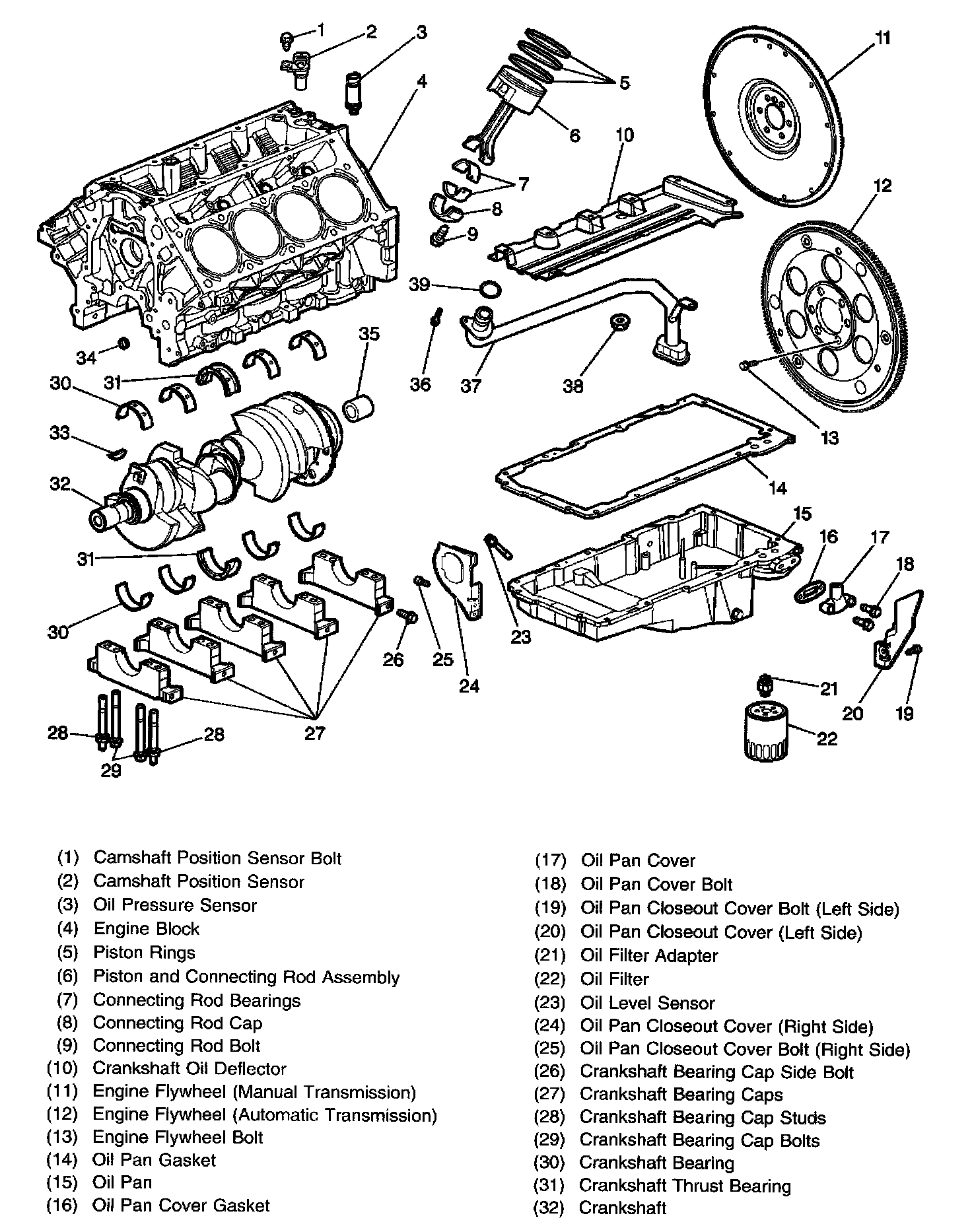

Lower Engine Assembly

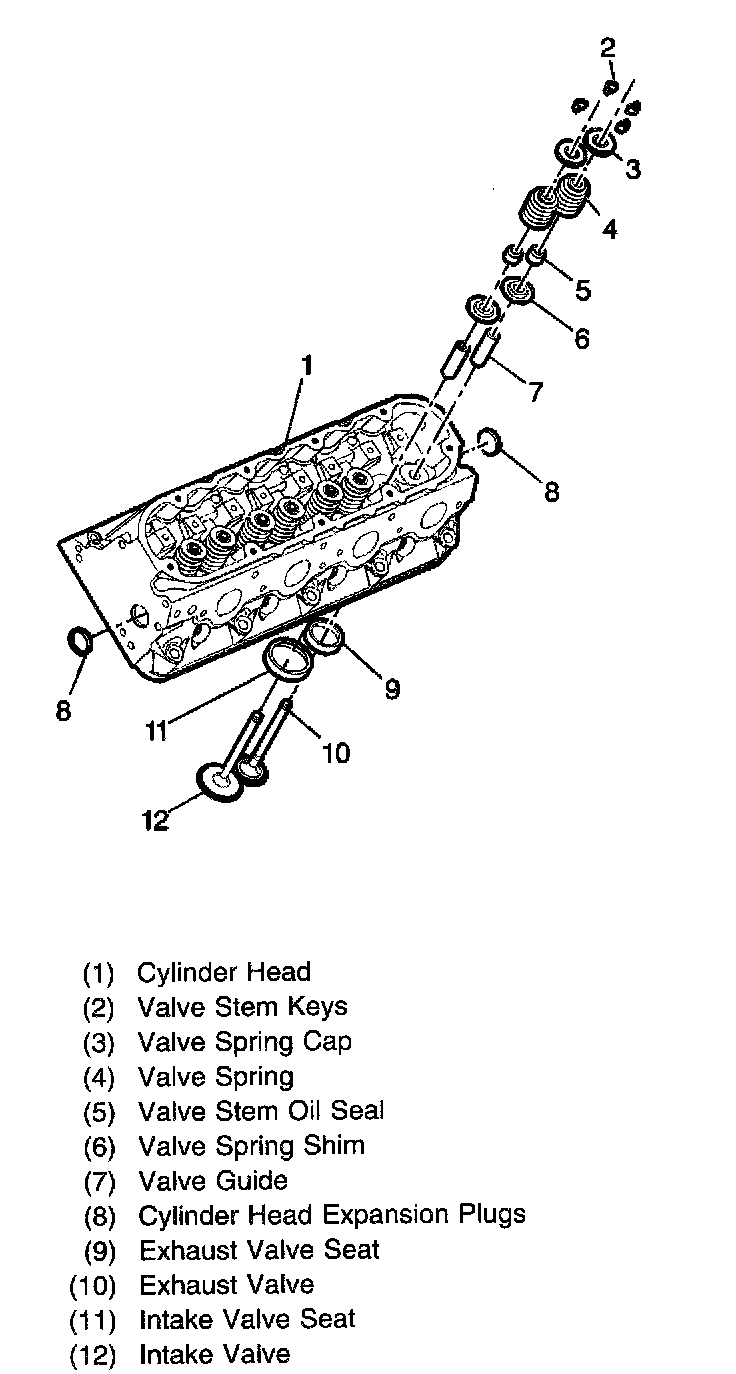

Cylinder Head Assembly (Aluminum)

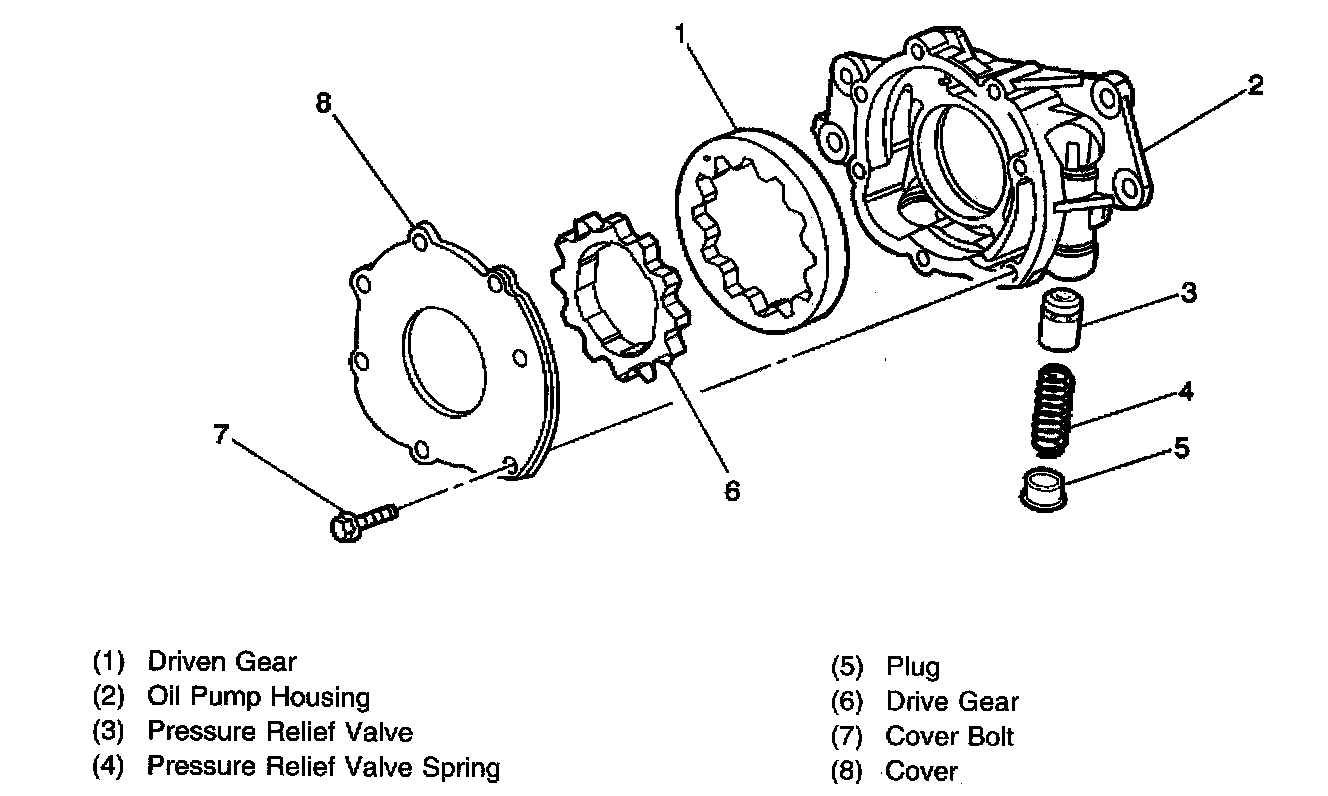

Oil Pump Assembly
