Body Control Module System Outputs

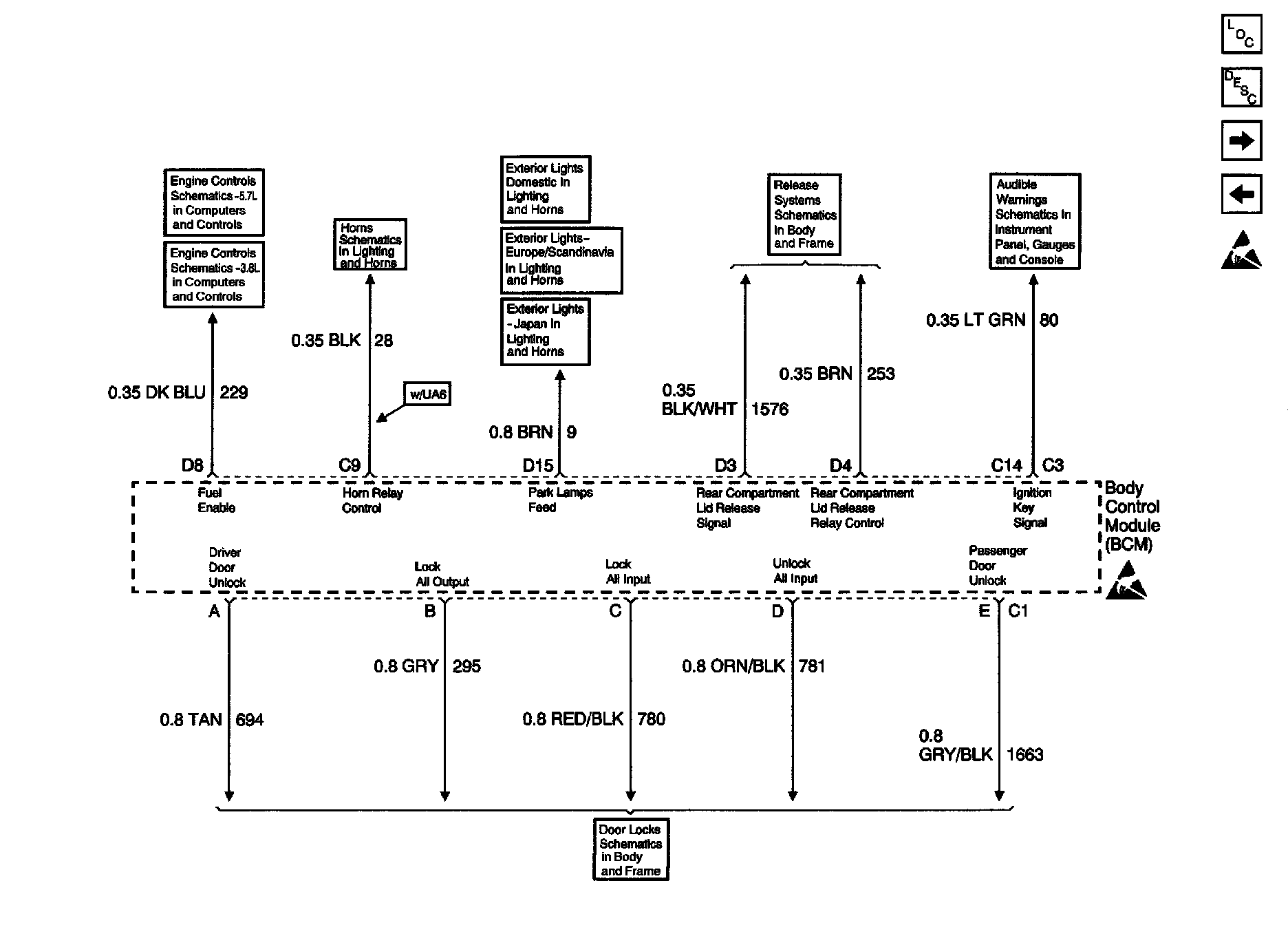

Body Control Module Schematics: Body Control Module System Outputs:
