BCM, Cruise Control Module, EBCM, IPC, Radio, and VSS

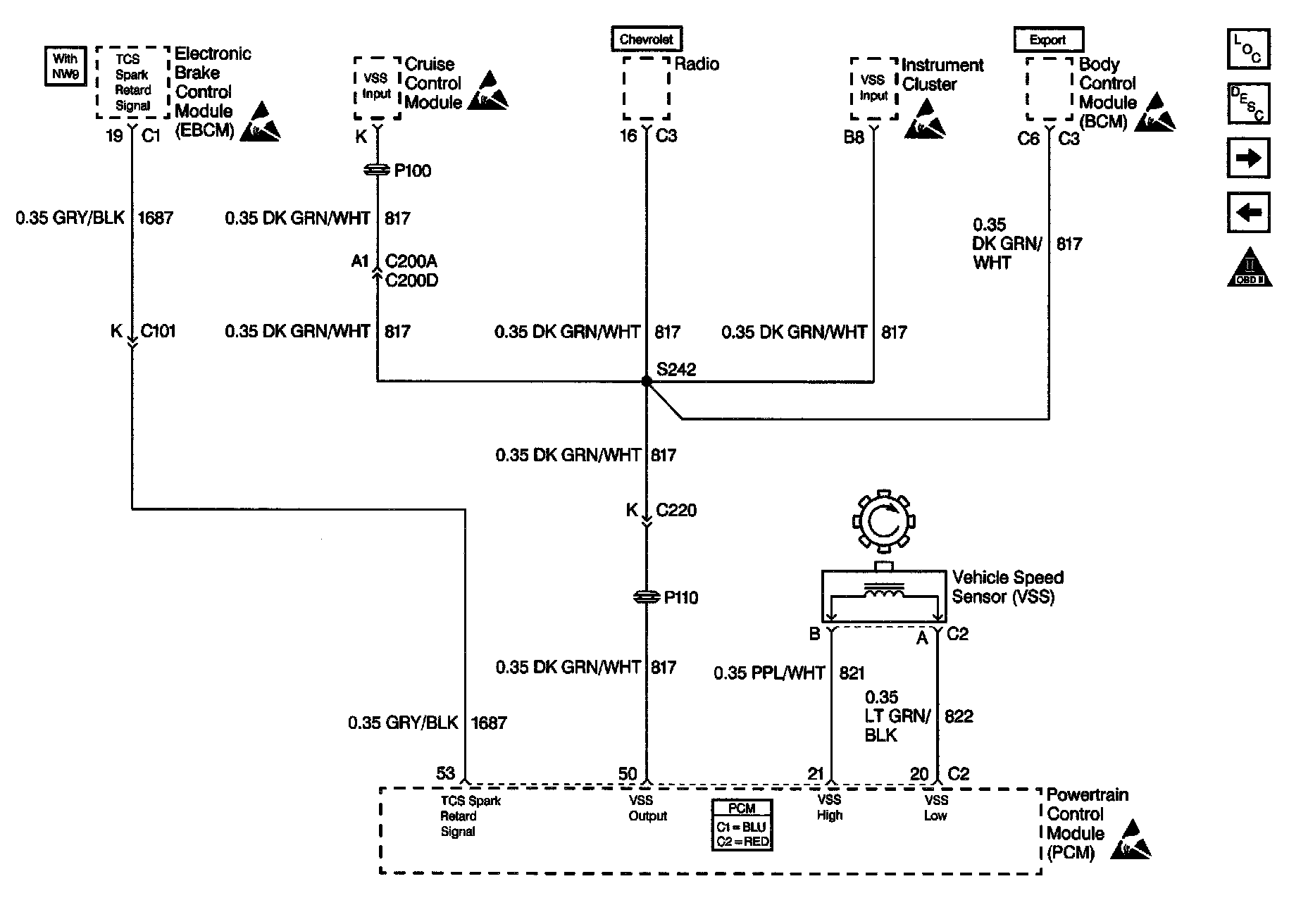

Engine Controls Schematics: BCM, Cruise Control Module, EBCM, IPC, Radio, and VSS:
