Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block I/P MiniFuse(R) Application
Fuse Block I/P MiniFuse(R) Application

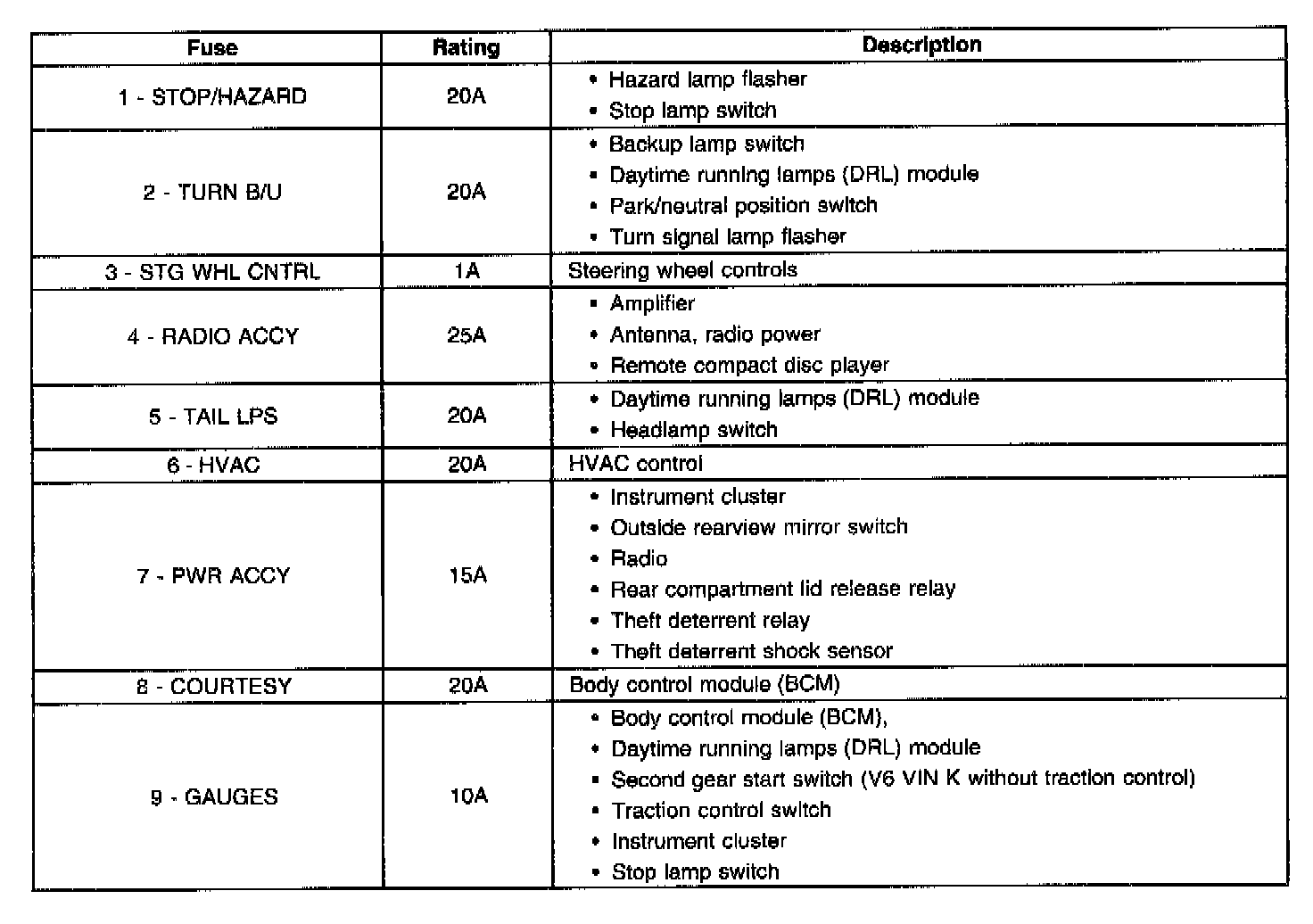

IP Fuse Block MiniFuse(R) Application (Part 1of 2):

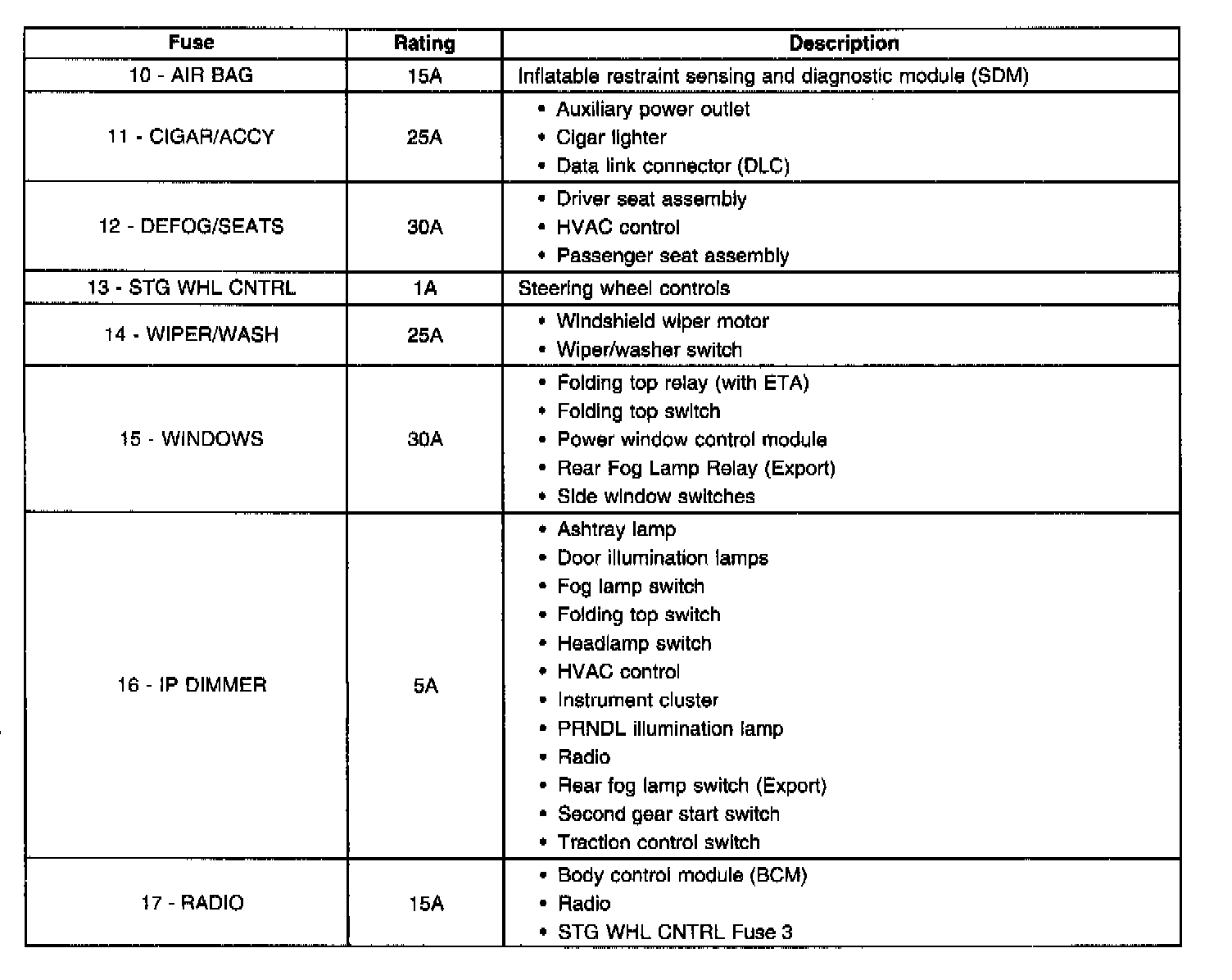

IP Fuse Block MiniFuse(R) Application (Part 2 Of 2):
