Engine

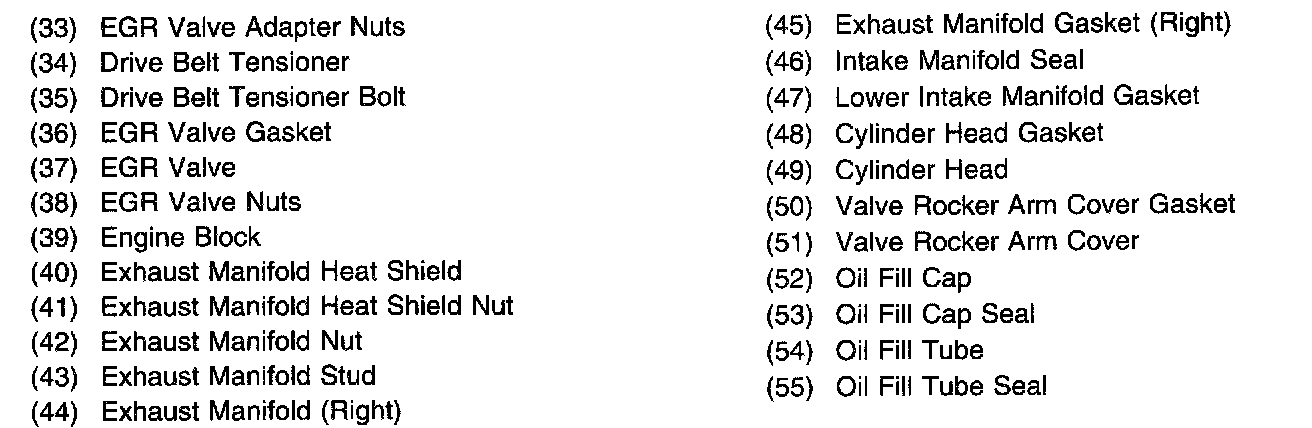

Cylinder Head and Components

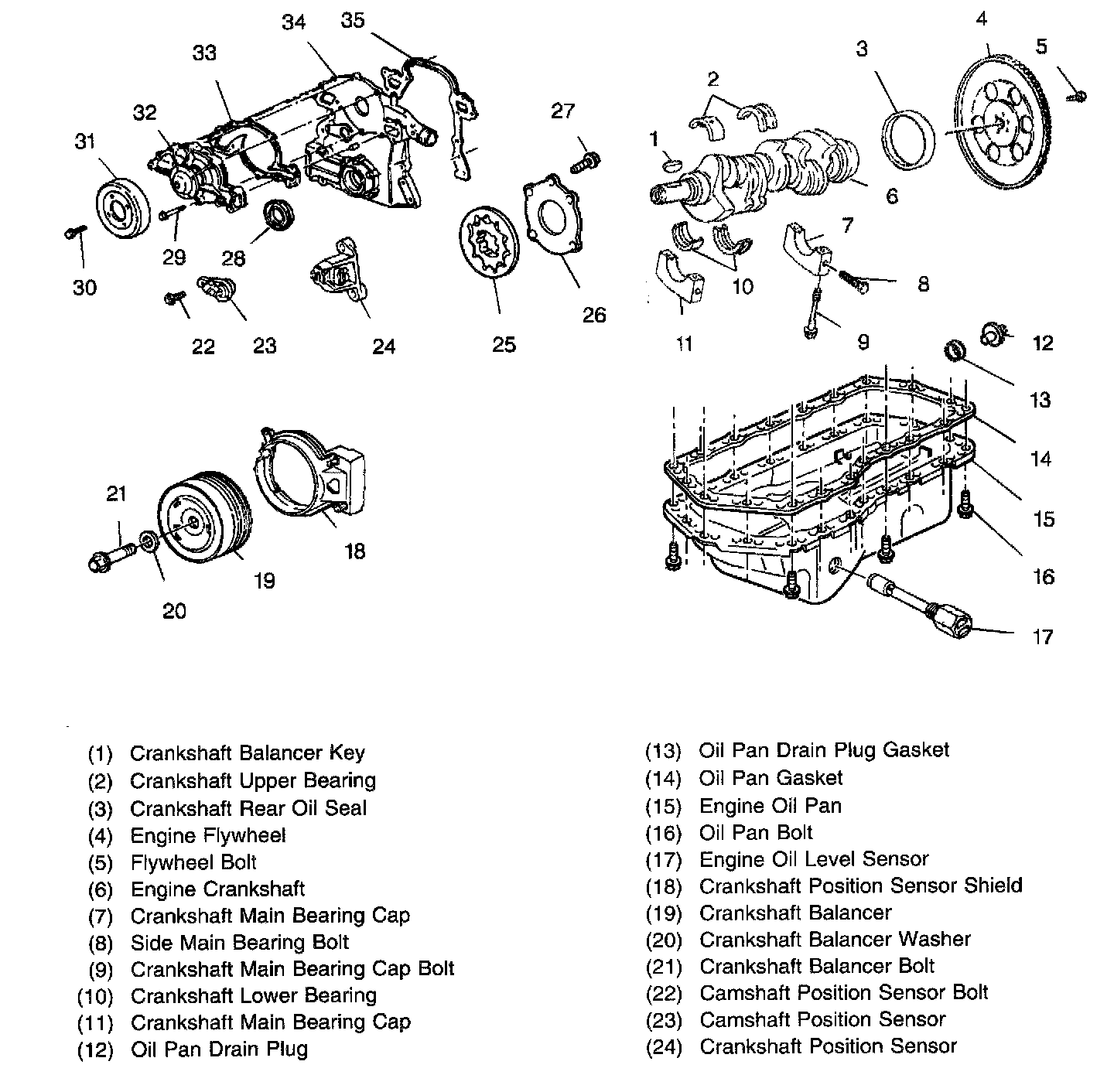

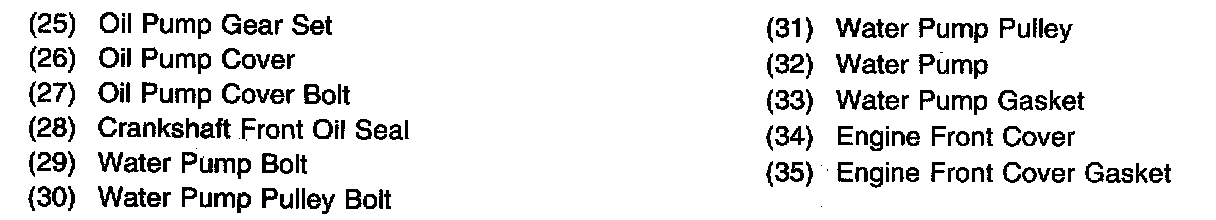

Crankshaft and Components

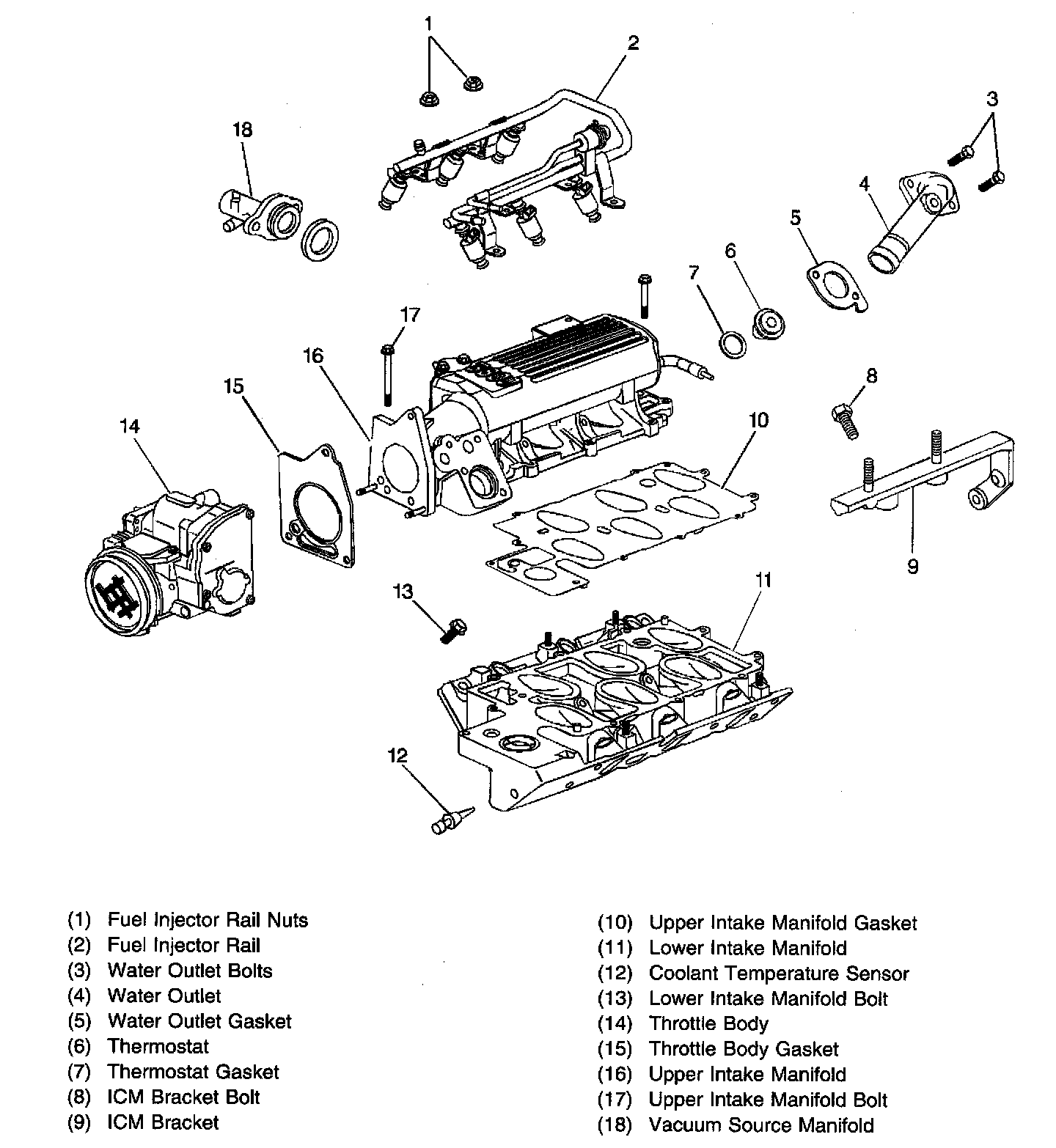

Intake Manifolds and Components

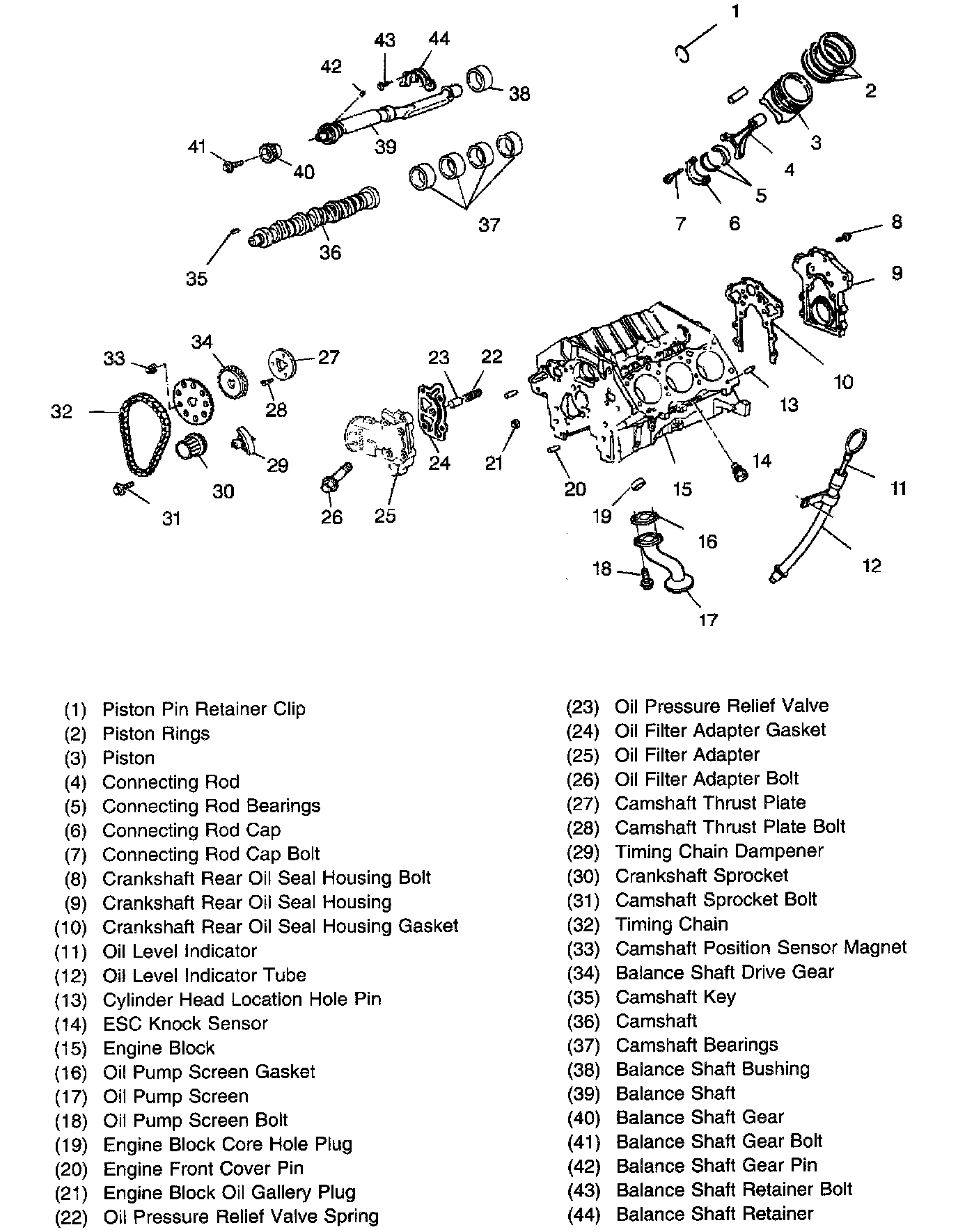

Piston and Components
