Body Control Module and Courtesy Lamps

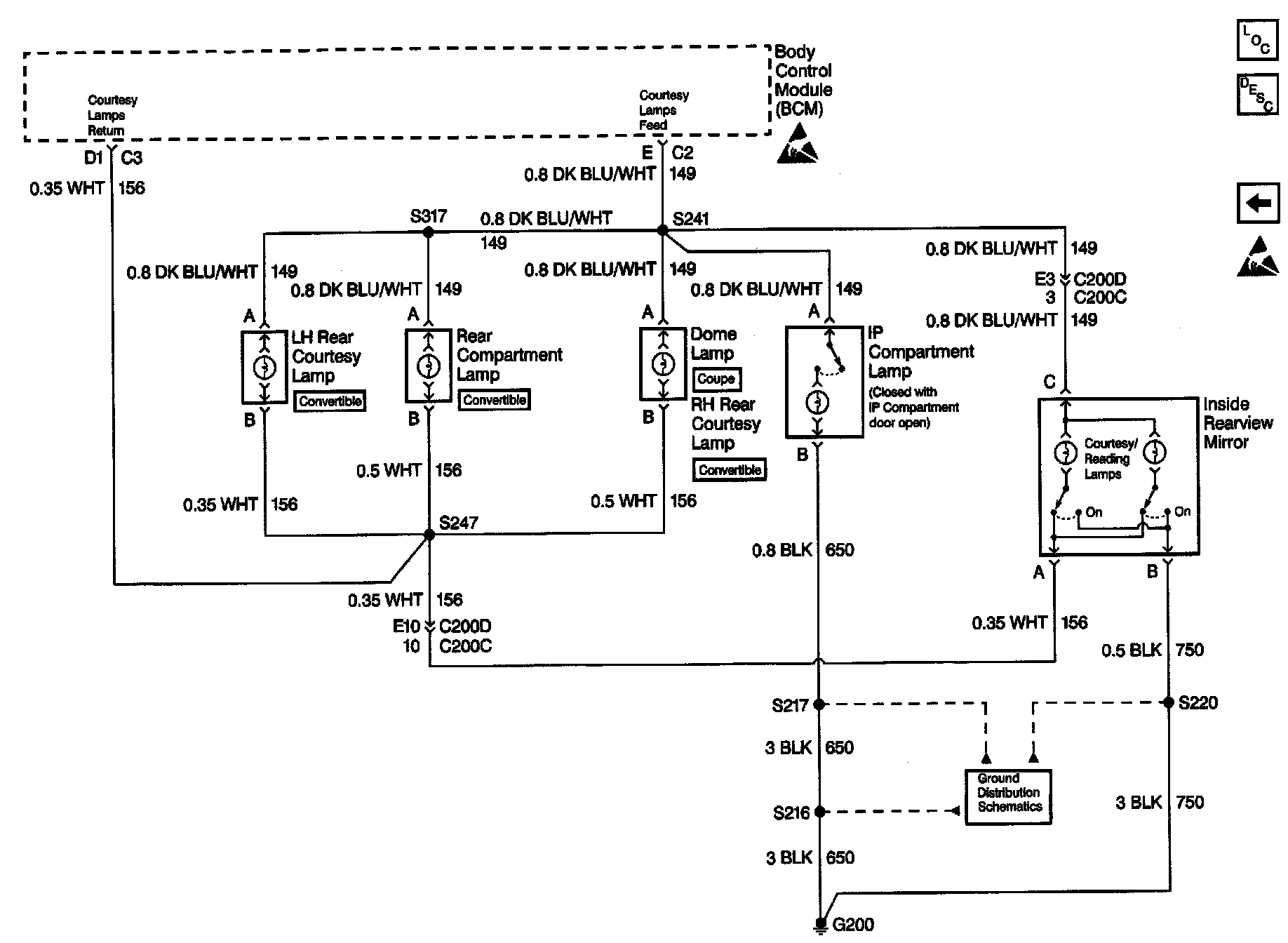

Keyless Entry Schematics: Body Control Module And Courtesy Lamps:
