Home >> Pontiac >> 2000 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> Cruise Control Switch >> Engine Controls Schematics

Engine Controls Schematics

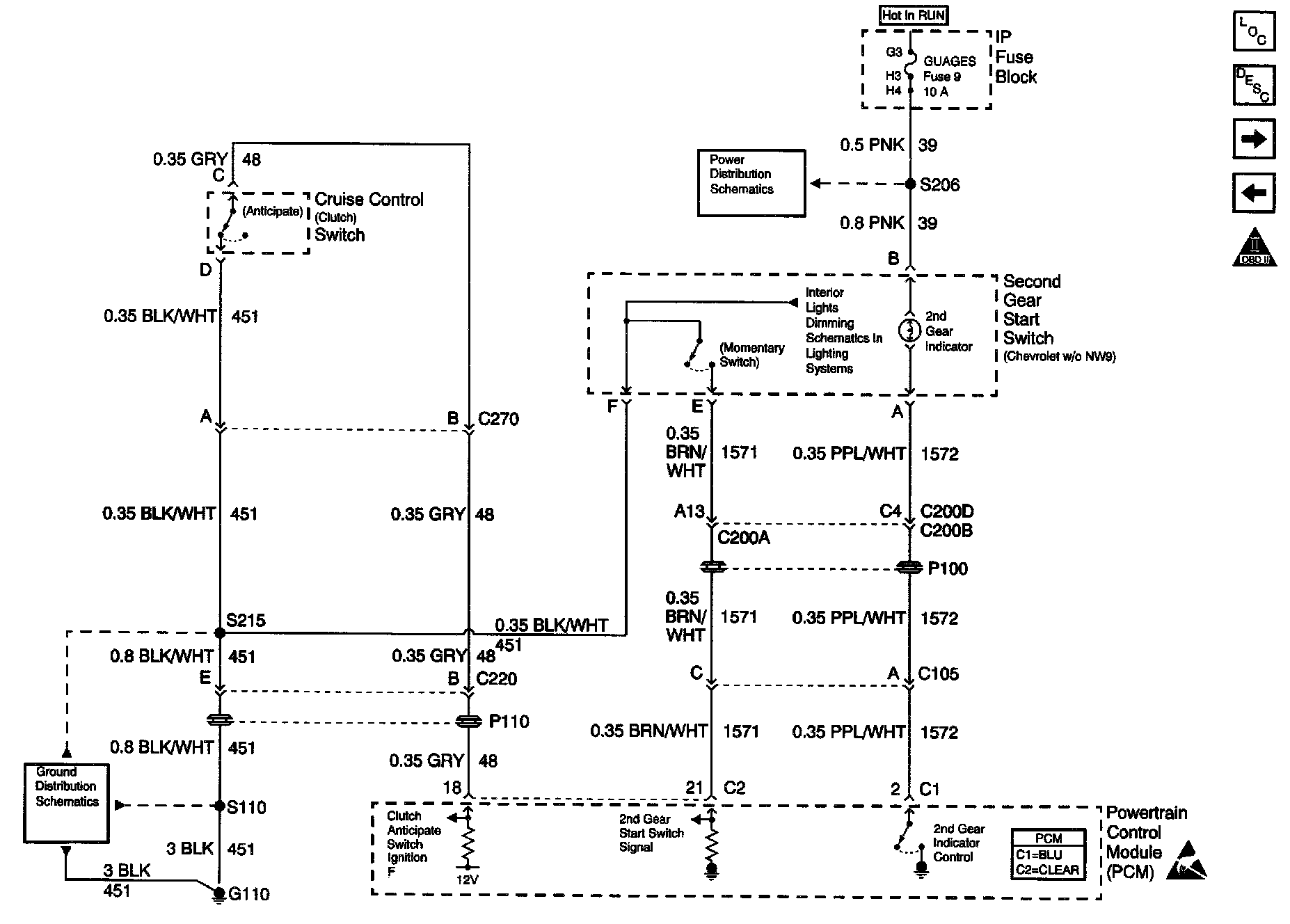

Engine Controls Schematics: Second Gear Start, Cruise Control Switches:
