Headlamp Switch, RCDLR, RAP Relay, Horn Relay

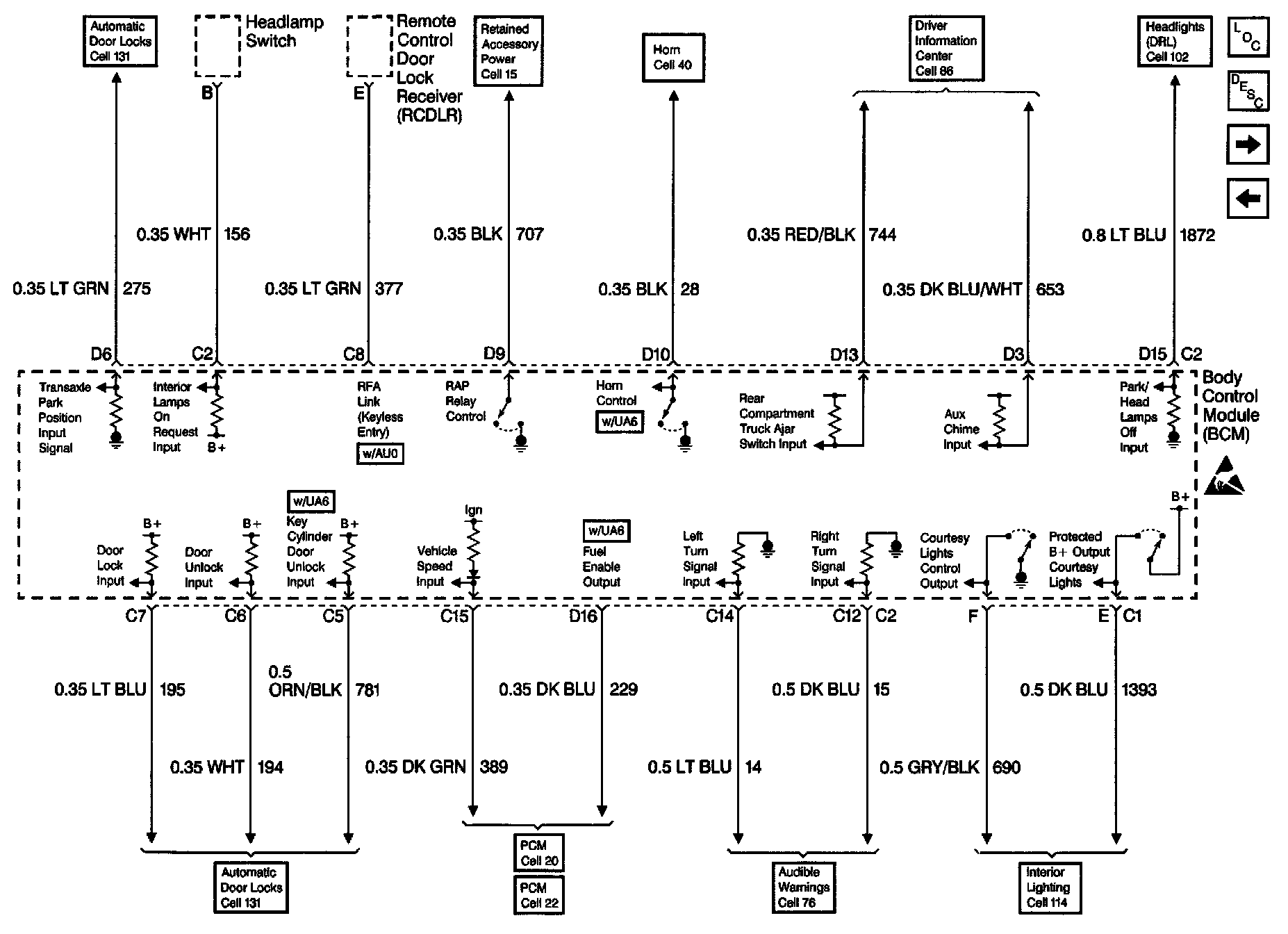

Body Control Module Schematics: Headlamp Switch, RCDLR, RAP Relay, Horn Relay:
