Gearshift Control Lever Replacement

Removal Procedure
1. Unscrew the gearshift control lever knob counterclockwise in order to remove the gearshift control lever knob from the gearshift control lever.
2. Remove the gearshift control lever upper boot from the gearshift control lever.
3. Remove the following components from the vehicle:
^ Six screws
^ The console

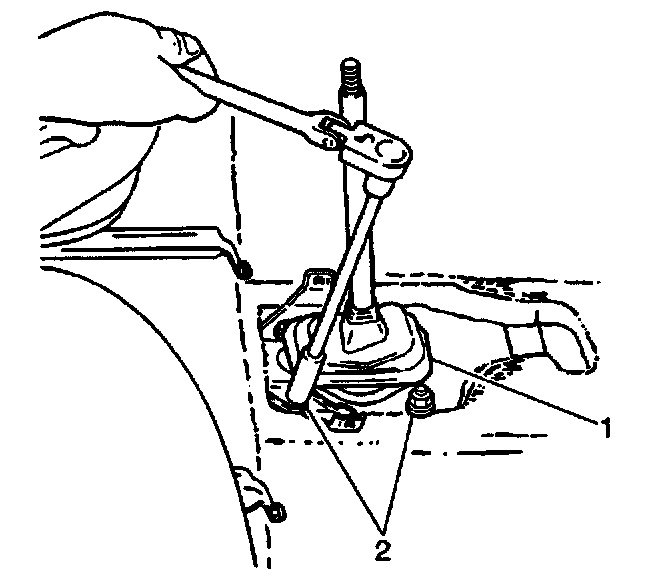

4. Remove the 4 gearshift control lever housing nuts (2) from the gearshift control lever housing studs.
5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

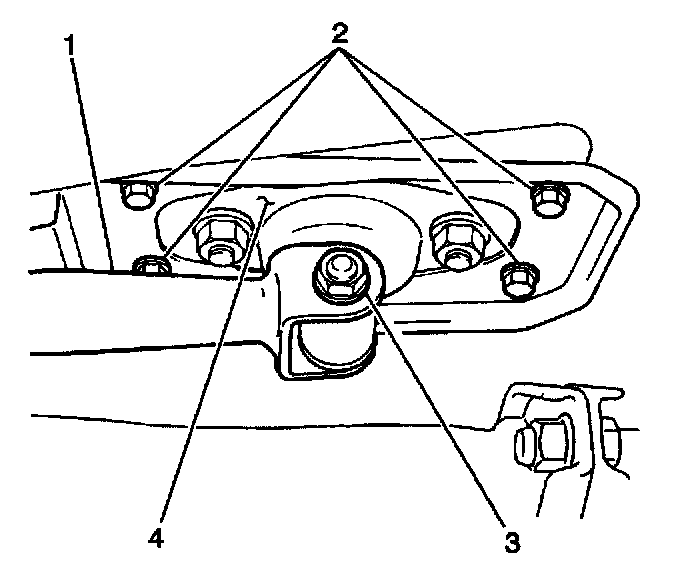

6. Remove the gearshift control shaft rear-through bolt and nut (3) from the gearshift control shaft (1).
7. Remove the following components from the gearshift control lever guide plate (4):
^ The 4 gearshift control lever guide plate bolts (2)
^ The extension rod
8. Remove the gearshift control lever from the vehicle.
9. Remove the gearshift control lever boot cover from the gearshift control lever.

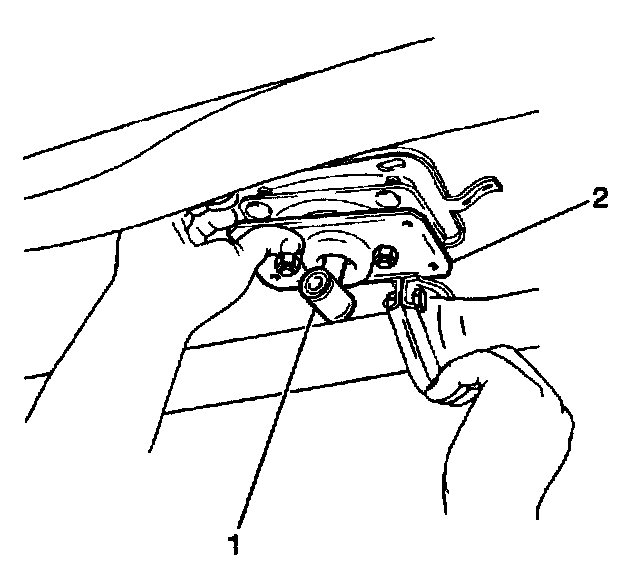

10. Remove the gearshift control lever lower boot (1) from the gearshift control lever.

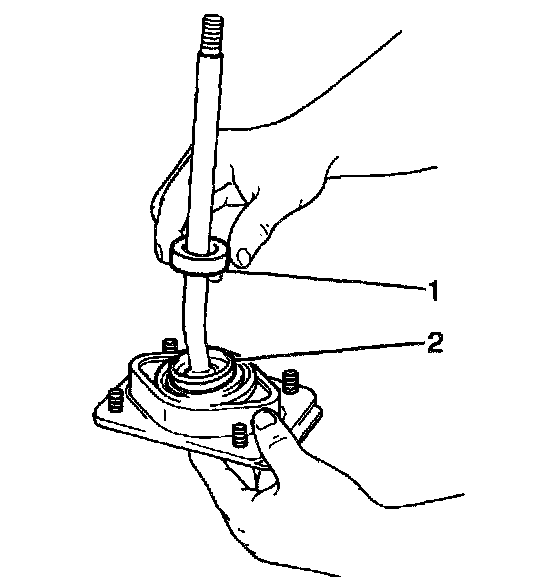

11. Remove the following components from the gearshift control lever housing (2):
^ The gearshift control lever snap ring
^ The gearshift control lever shim
^ The gearshift control lever upper seat (1)

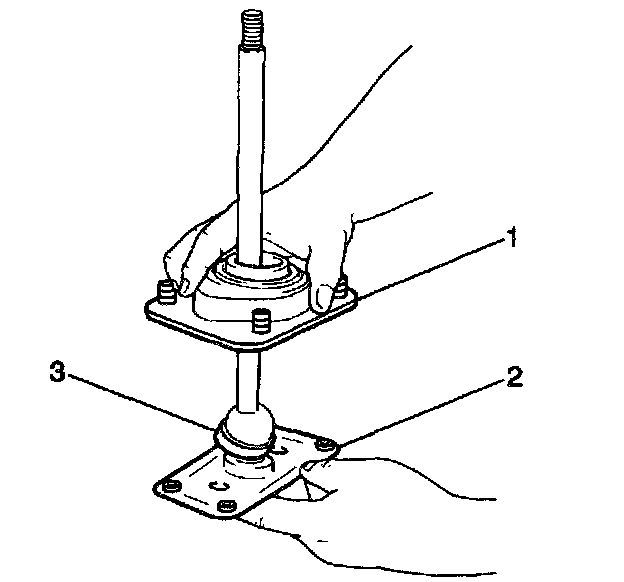

12. Remove the following components from the gearshift control lever guide plate (2):
^ Two gearshift control lever housing-to-guide plate nuts
^ Two washers
^ The gearshift control lever housing (1)
13. Remove the gearshift control lever lower seat (3) from the gearshift control lever.

Installation Procedure
1. Inspect the control lever components for excessive wear or damage. Replace the components as necessary.





2. Install the gearshift control lever lower seat (3) to the gearshift control lever.

Notice: Refer to Fastener Notice in Service Precautions.

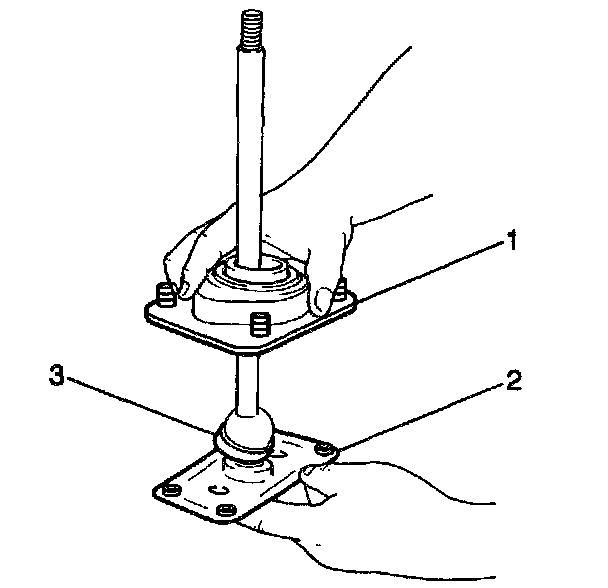

3. Install the gearshift control lever housing (1) to the gearshift control lever guide plate (2). Use the following components in order to secure the gearshift control lever housing (1):
^ Two washers
^ Two gearshift control lever housing-to-guide plate nuts
Tighten the gearshift control lever housing-to-guide plate nuts to 40 Nm (29 ft. lbs.).





4. Install the gearshift control lever upper seat (1) and the shim into the gearshift control lever housing. Use the control lever snap ring in order to secure the gearshift control lever upper seat and shim.
5. Install the gearshift control lever lower boot (1) onto the gearshift control lever.
6. Install the gearshift control lever boot cover onto the gearshift control lever.





7. Install the gearshift control lever (1) into the vehicle.

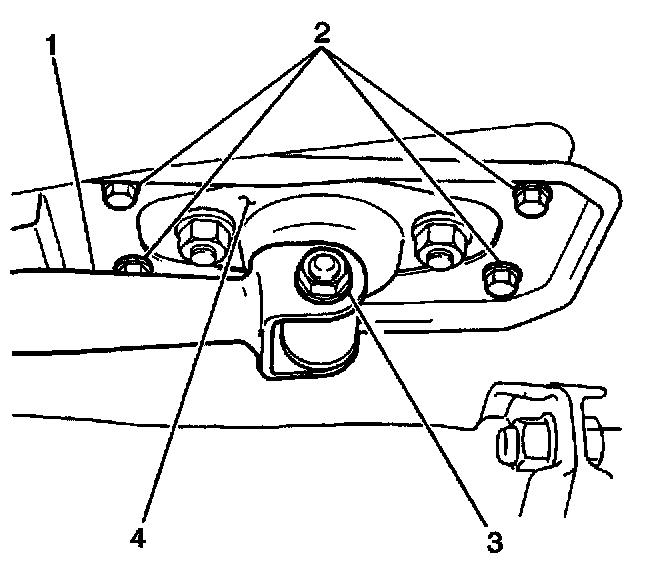

8. Install the extension rod to the gearshift control lever guide plate (4). Use four gearshift control lever guide plate bolts (2) in order to secure the extension rod.
Tighten the gearshift control lever guide plate bolts (2) to 10 Nm (89 inch lbs.).
9. Install the gearshift control shaft to the gearshift control lever. Use the gearshift control shaft rear through bolt and nut in order to secure the gearshift control shaft.
Tighten the gearshift control shaft rear through bolt and nut to 20 Nm (15 ft. lbs.).
10. Lower the vehicle.
11. Install four gearshift control lever housing nuts to the gearshift control lever housing studs. Do NOT fully tighten the nuts.

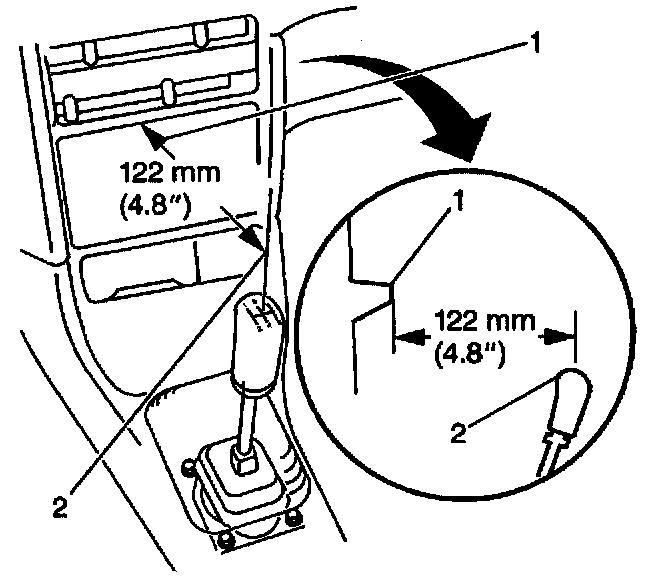

12. Measure the distance from the gearshift control lever knob (2) to the instrument panel (1) with the gearshift control lever in the NEUTRAL position. The distance should measure 122 mm (4.8 inch).
13. If the gearshift control lever is not at the correct distance from the instrument panel, move the control lever forward or backward in order to obtain the proper distance.
14. Secure the gearshift control lever housing nuts.
Tighten the gearshift control lever housing nuts to 6 Nm (53 inch lbs.).
15. Measure the gearshift control lever vertical play. The vertical play should measure no more than 0.2 mm (0.0007 inch).
16. If the gearshift control lever vertical play exceeds 0.2 mm (0.0007 inch), replace the existing shim with a larger shim. Refer to Transaxle Specifications.
17. Install the console into the vehicle. Use six screws in order to secure the console.
18. Install the gearshift control lever upper boot to the gearshift control lever.
19. Apply a light coat of GM P/N 12345493 or the equivalent to the threaded portion of the gearshift control lever.
20. Screw the gearshift control lever knob on clockwise in order to install the gearshift control lever knob to the gearshift control lever.
