G300

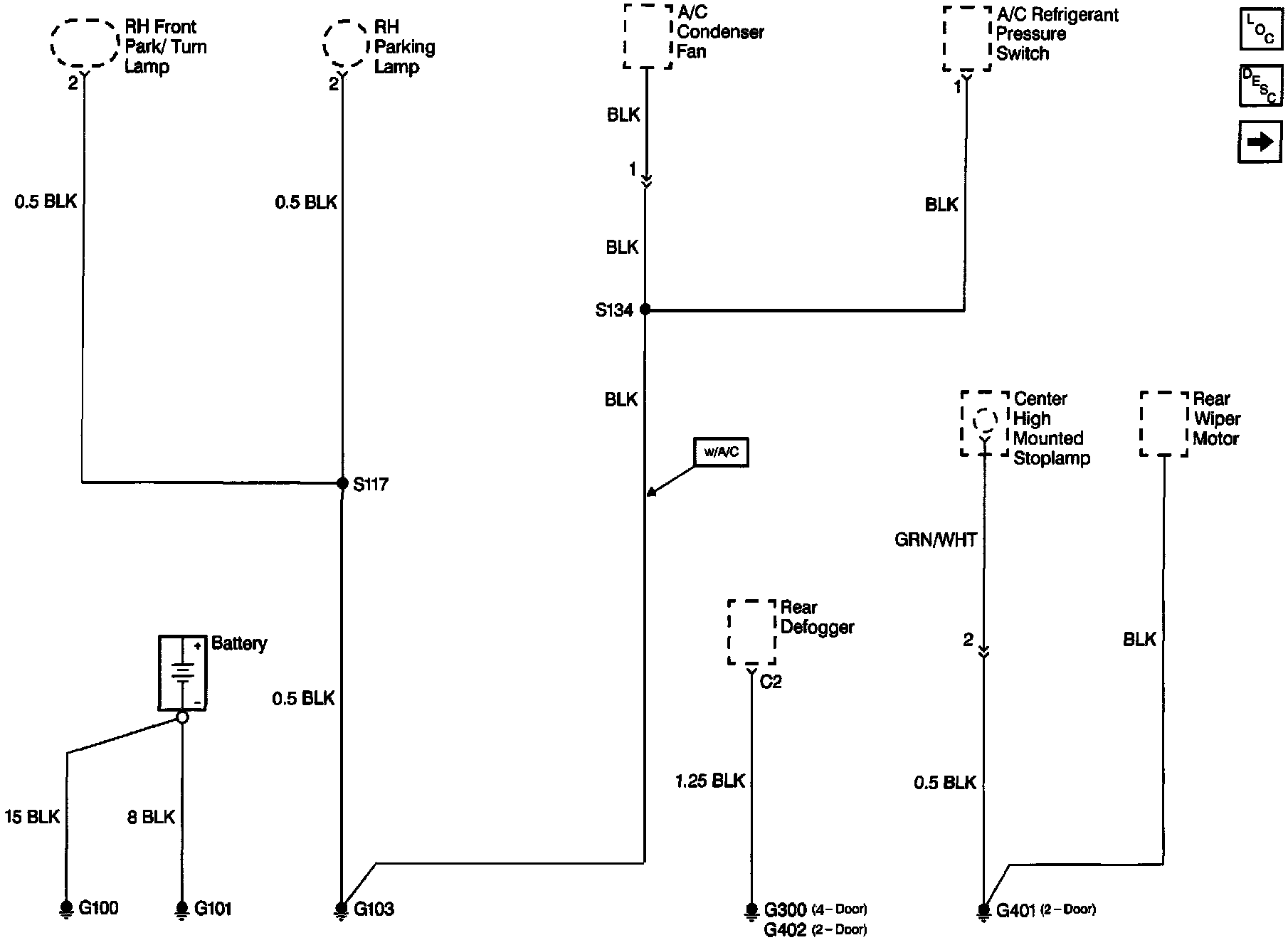

Ground Distribution Schematics: G100, G101, G103, G300 (4-Door), G401 (2-Door), And G402 (2-Door):
