Ride/Trim Height Specifications

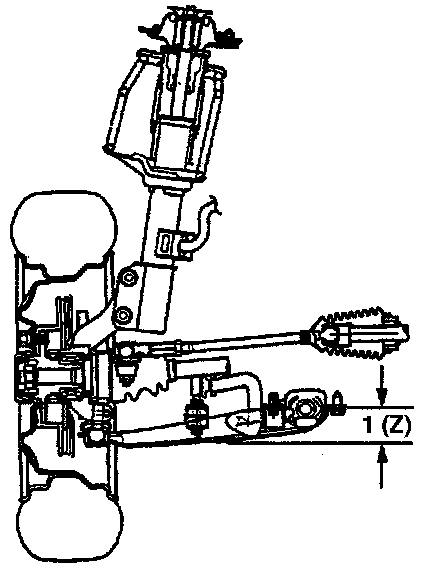

Z Measurement:

"Z" Trim Height Specifications (Trim Height)
Two-Door Hatchback (1) 45 mm (1.75 inch)
Four-Door (1) 45 mm (1.75 inch)

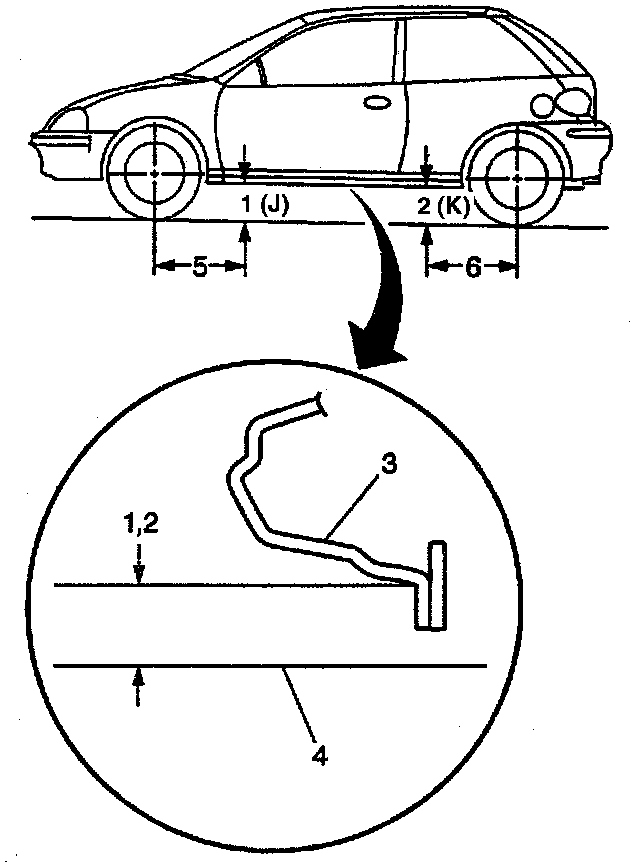

J, K Measurement:

"J,K" Trim Height Specifications (Wheel Bearing)
Two-Door Hatchback:
1(J) 210 mm (8.25 inch)
2(K) 225 mm (8.85 inch)
5 450 mm (17.75 inch)
6 450 mm (17.75 inch)
Four-Door:
1(J) 210 mm (8.25 inch)
2(K) 225 mm (8.85 inch)
5 450 mm (17.75 inch)
6 450 mm (17.75 inch)
