Wheel Speed Sensor Replacement (Rear)

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Remove the Rear wheel.

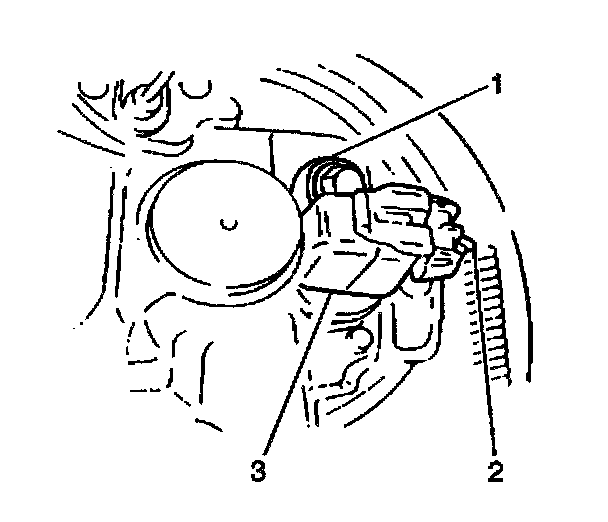

3. Disconnect the rear wheel speed sensor electrical connector (2).
4. Remove the retaining bolt (1).
5. Remove the rear wheel speed sensor (3) from the rear suspension knuckle.

INSTALLATION PROCEDURE

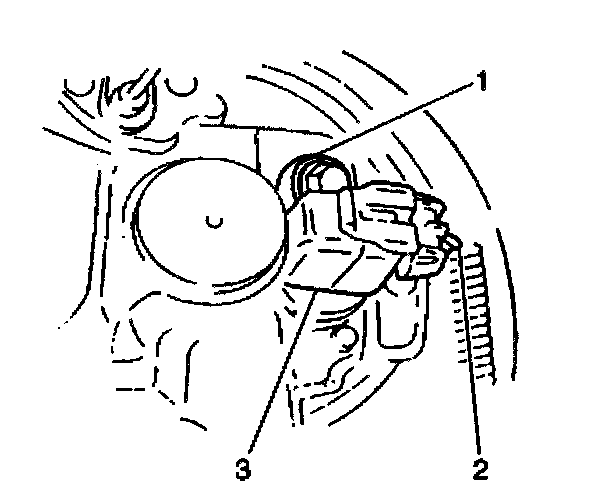

1. Install the rear wheel speed sensor (3) to the rear suspension knuckle.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining bolt (1).
^ Tighten the retaining bolt (1) to 10 Nm (86 inch lbs.).

3. Connect the rear wheel speed sensor electrical connector (2).
4. Install the Rear wheel.
5. Lower the vehicle.
6. Perform the ABS Diagnostic System Check.
