Installation Procedure

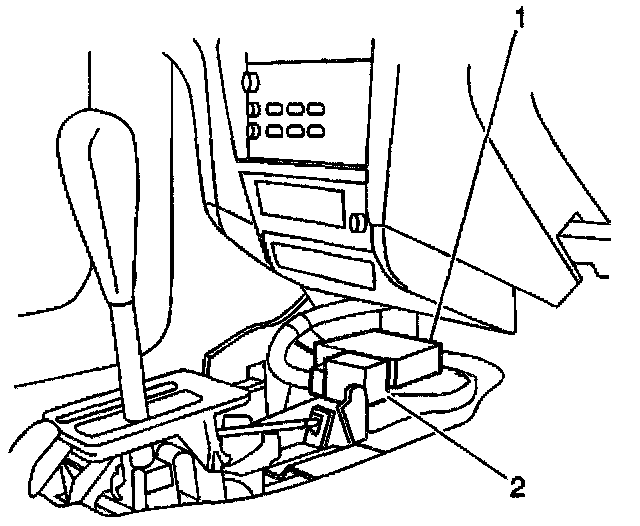

1. Install the SDM (1) into the vehicle, taking care to ensure that the arrow is pointing toward the front of the vehicle.
2. Install the SDM fasteners (3).

Tighten
Tighten the fasteners to 5.5 N.m (49 lb in).

3. Install the electrical connector and install the CPA.
4. Install the center console.
5. Enable the SIR system.
