Electronic Brake Control Relay

REMOVAL PROCEDURE
1. Open the hood.
2. Remove the underhood Electrical Center cover.

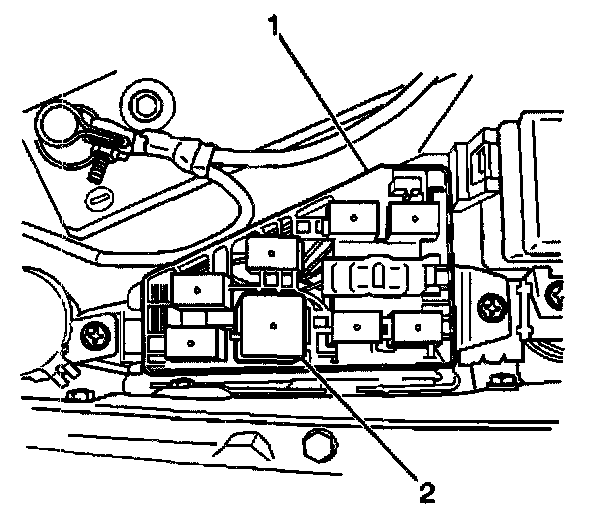

3. Remove the Electronic Brake Control Relay (2) from the underhood electrical center (1).

INSTALLATION PROCEDURE

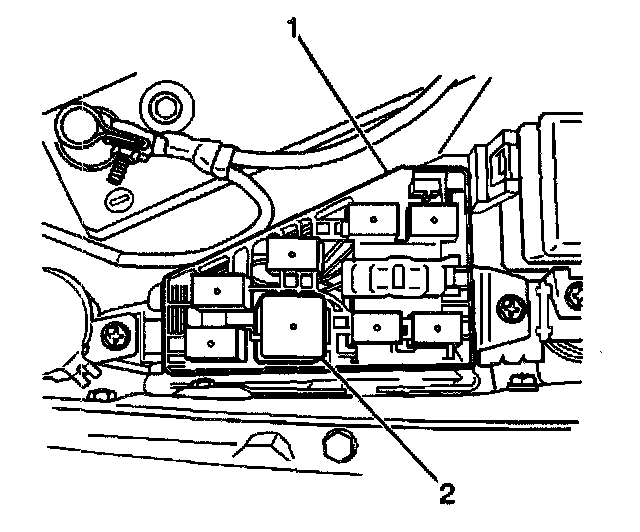

1. Install the Electronic Brake Control Relay (2) into the underhood electrical center (1).
2. Install the underhood Electrical Center cover.
3. Close the hood.
4. Perform the ABS Diagnostic System Check.
