Home >> Pontiac >> 1999 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Distributor >> Locations

Distributor: Locations

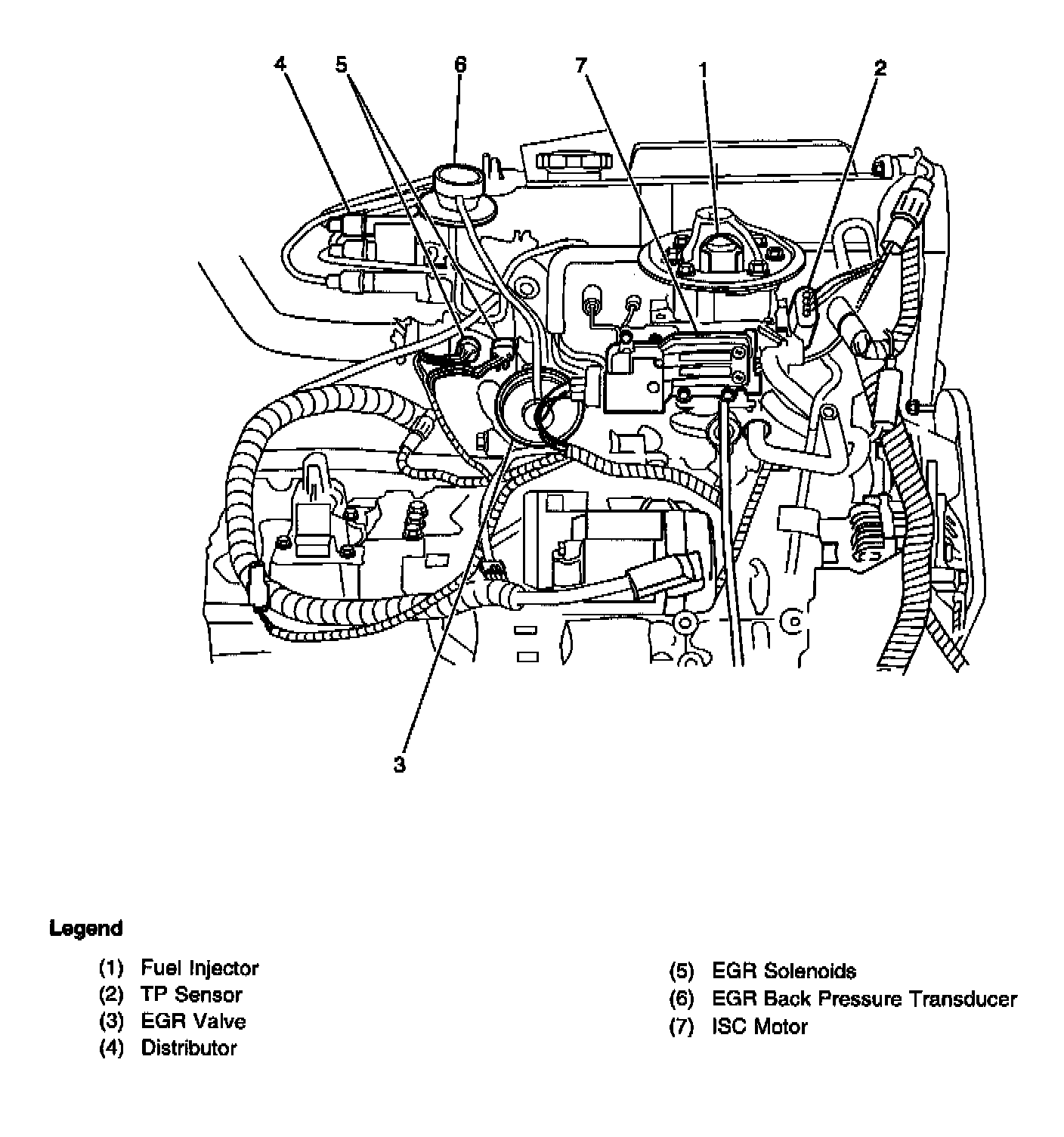

TBI Assembly And EGR System:




Left side of the engine
