Fuel Sender Assembly

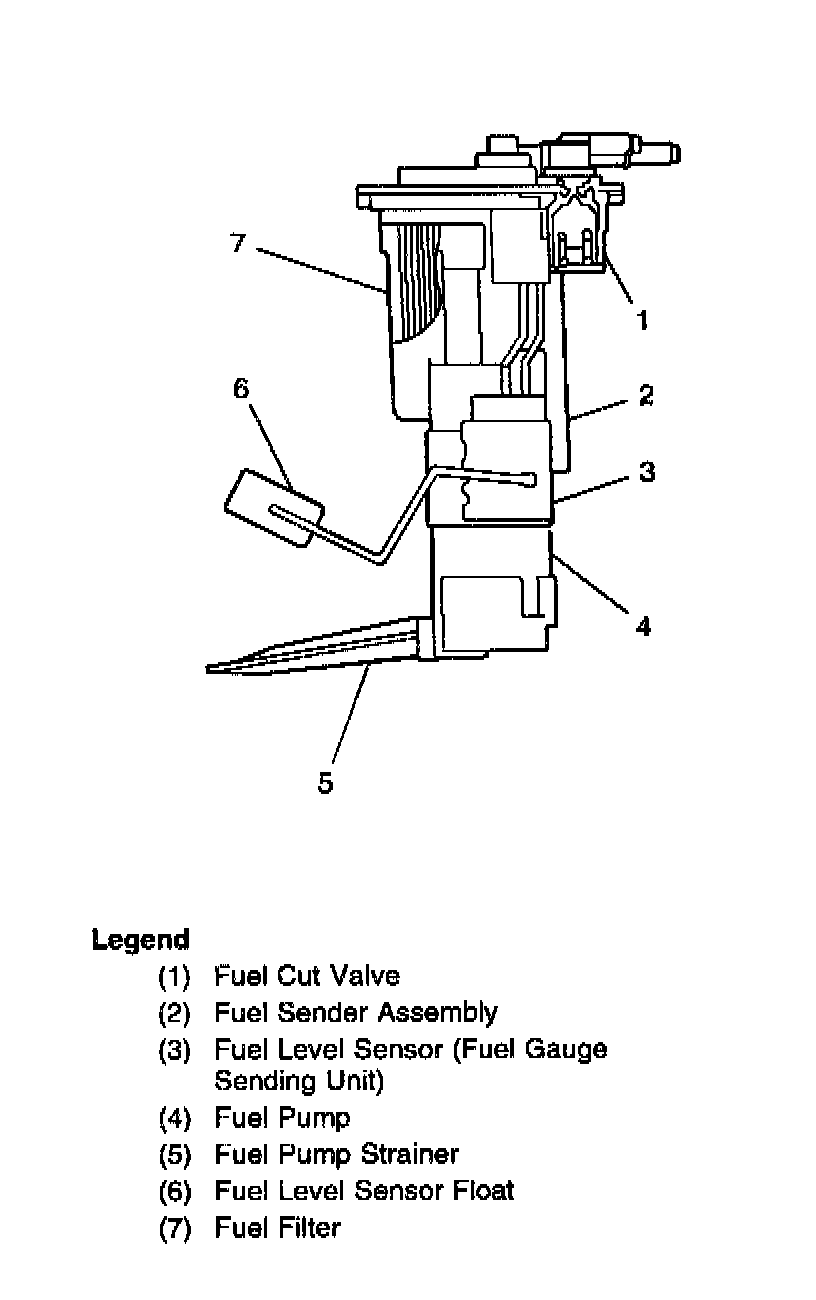

Fuel Sensor Assembly:

The fuel sender assembly is located in the fuel tank. The fuel sender assembly contains the electric fuel pump, the fuel level sensor (fuel gauge sender), and the fuel filter. The fuel sender assembly connects to the fuel lines with quick connect fittings. A fuel cut valve is located in the fuel sender assembly just below the fuel vapor pipe. The fuel cut valve consists of a float and a spring. The fuel cut valve allows only fuel vapors to enter the fuel vapor pipe. This prevents liquid fuel from leaving the fuel tank and flowing into the EVAP canister.
