Home >> Pontiac >> 1999 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> Navigational Aids >> Schematics >> A >> "A" Source

"A" Source

Power Distribution Schematics: Batt, Lamp, IG, ABS, PTC, FI, RDTR, A/C, Tail, Door Lock, H/L, L, R, Dome, Stop, Hazard Fuses (Part 1 Of 2):

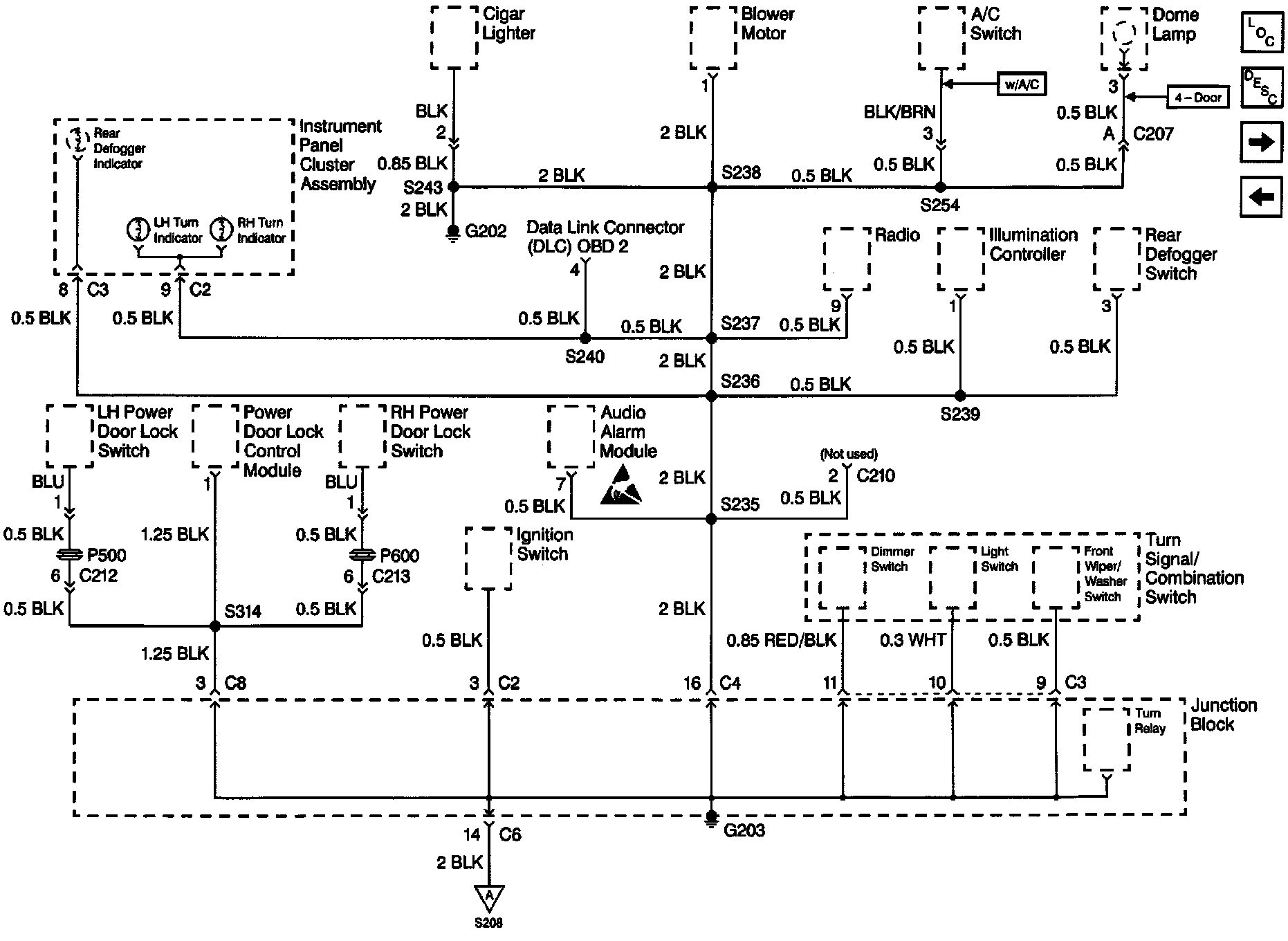

Ground Distribution Schematics: G102, G201, G202, And G203 And Cigar Lighter:
