Oil Filter: Service and Repair

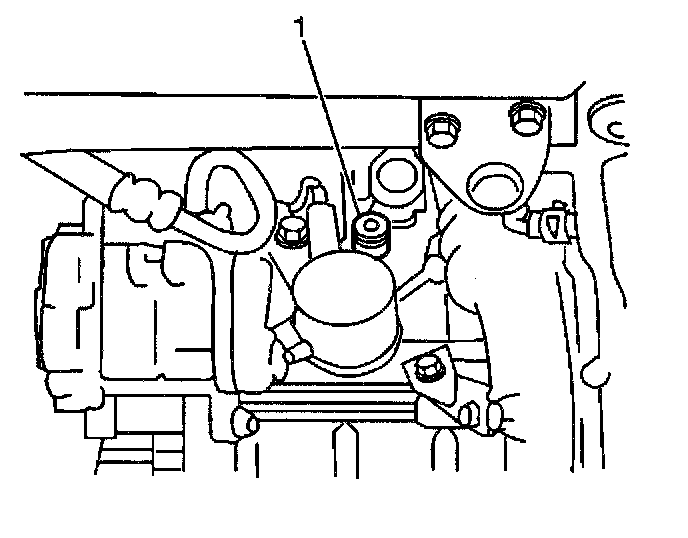

Removal Procedure

1. Raise the vehicle. Refer to Vehicle Lifting.





2. Remove the oil pan drain plug bolt.
3. Remove the oil filter.

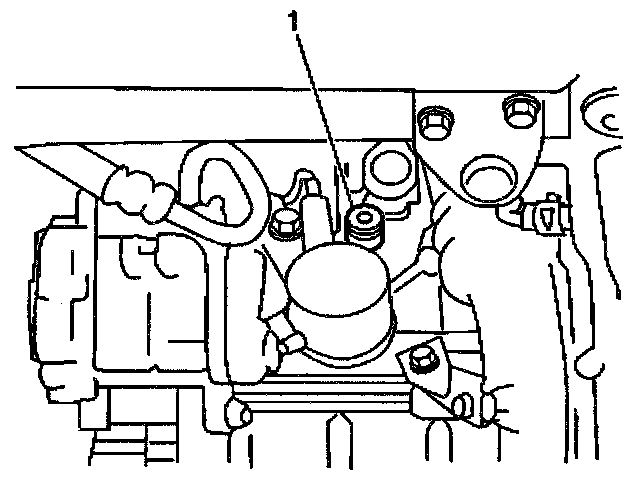

Installation Procedure

1. Install the oil filter.

NOTICE: Refer to Fastener Notice in Service Precautions.





2. Install the oil pan drain plug bolt.
Tighten the oil pan drain plug bolt to 35 Nm (25 ft. lbs.)
3. Lower the vehicle.
4. Fill the engine with oil to the appropriate mark.

IMPORTANT: Oil capacity with oil and filter change is 3.3 liters (3.5 quarts)

5. Start engine and check for leaks.
