Home >> Pontiac >> 1999 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Audio Alarm Module (Chime)

Audio Alarm Module (Chime)

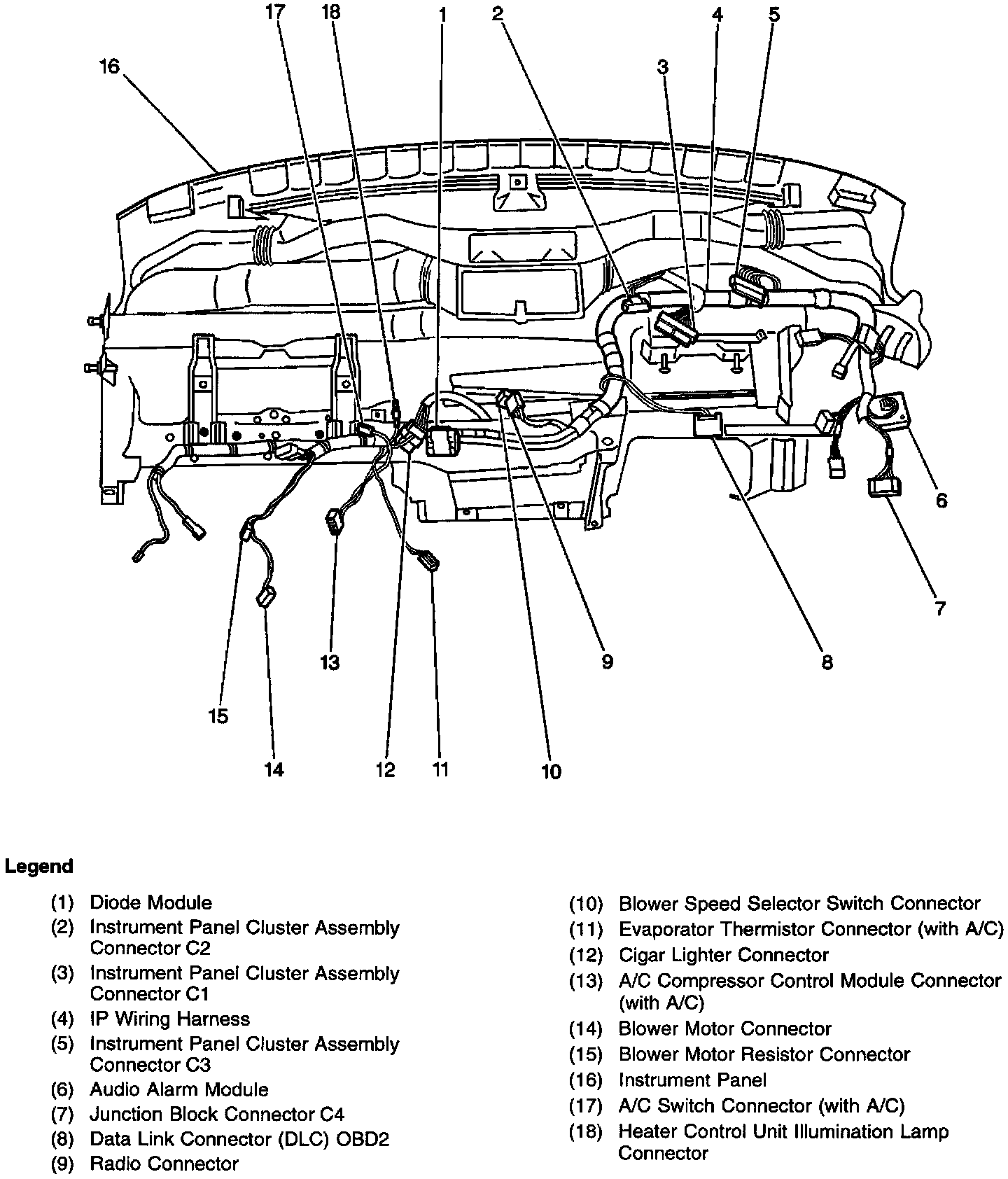

Instrument Panel - Rear View:





Left side of the lower IP, left of Steering column
