2-Door

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

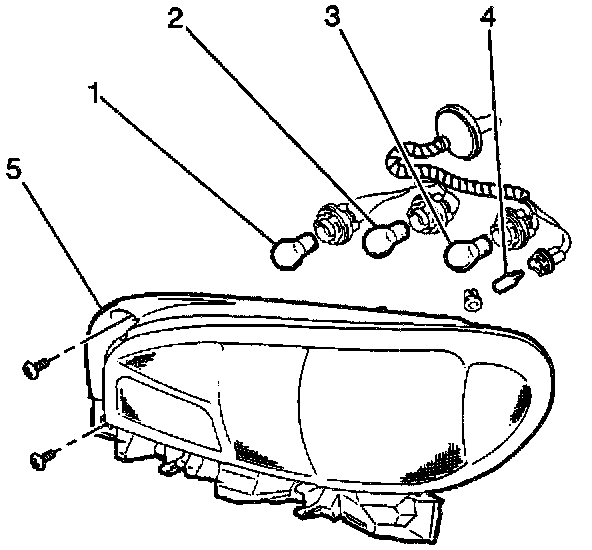

2. Remove the 2 screws which secure the tail lamp (5).
3. Pull the tail lamp (5) away from the rear end panel in order to gain access to the socket of the turn signal lamp bulb (2).
4. Remove the turn signal lamp socket from the tail lamp (5).
5. Remove the turn signal lamp bulb (2) from the socket.

INSTALLATION PROCEDURE
1. Install the turn signal lamp bulb (2) to the lamp socket.
2. Install the turn signal lamp socket to the tail lamp (5).
3. Install the tail lamp (5) to the rear end panel. Secure the lamp with the 2 screws.
4. Connect the negative battery cable.
