Turn Signal Lamp: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

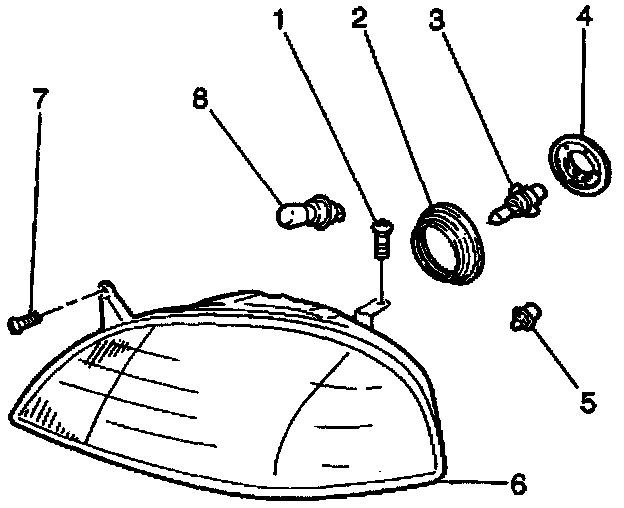

2. Remove the 2 screws (1,7) which secure the composite headlamp/turn signal/parking lamp housing assembly (6).
3. Turn the parking/turn signal bulb (8) socket counterclockwise in order to remove the socket from the composite headlamp housing assembly (6).
4. Remove the bulb (8) from the socket, if necessary.

INSTALLATION PROCEDURE
1. Install the bulb (8) to the socket, if removed.
2. Rotate the parking/turn signal bulb (8) socket clockwise in order to secure the socket to the headlamp housing (6).
3. Install the composite headlamp/turn signal/parking lamp housing assembly (6) to the vehicle. Secure the assembly with the 2 screws (1, 7).
4. Connect the negative battery cable.
5. Adjust the composite headlamp aim.
