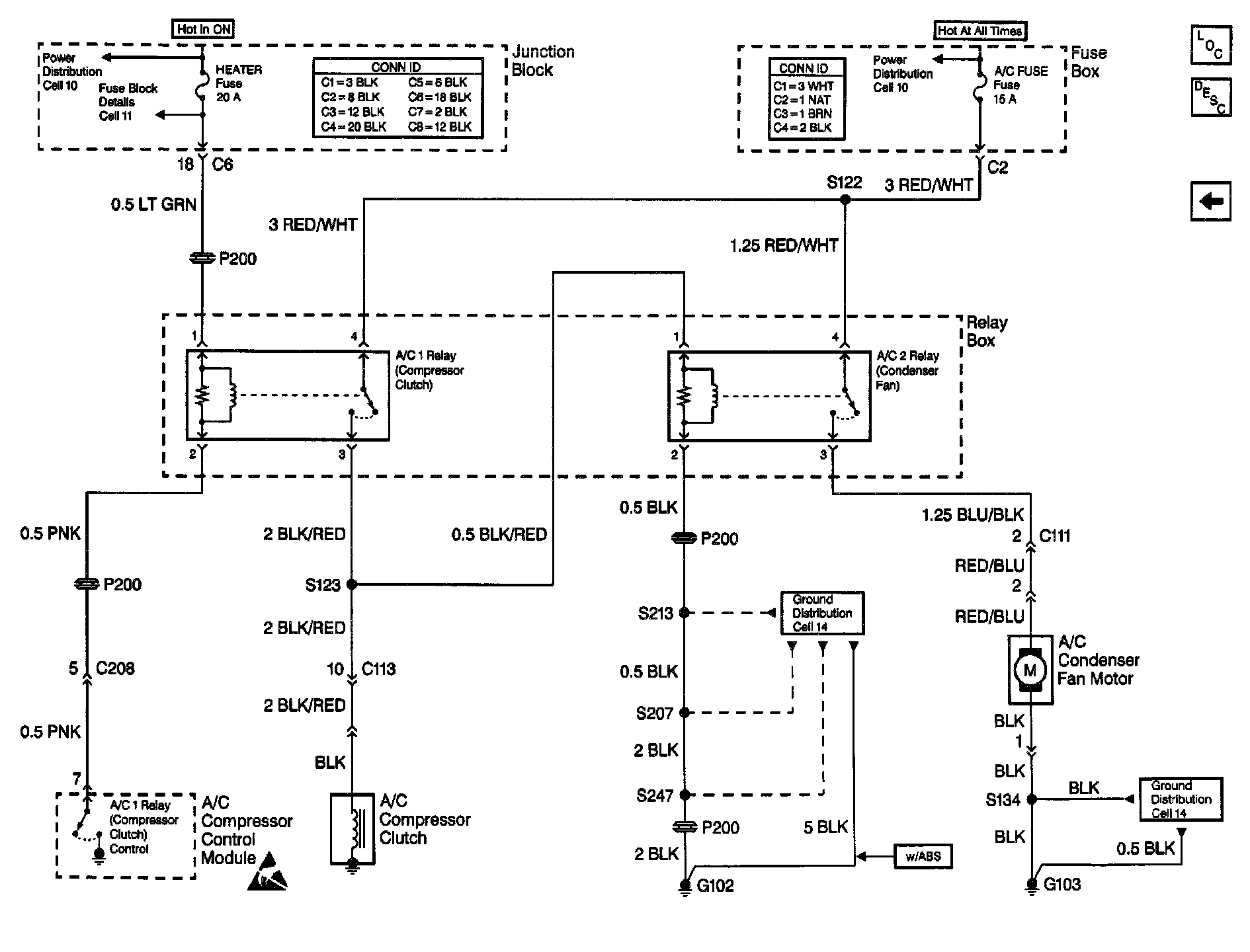

A/C Relays, Condenser Fan and Compressor Clutch

HVAC Compressor/Condenser Fan Control Schematics: A/C Relays, Condenser Fan And Compressor Clutch:
