Control Module HVAC: Service and Repair

A/C Compressor Control Module Replacement

REMOVAL PROCEDURE

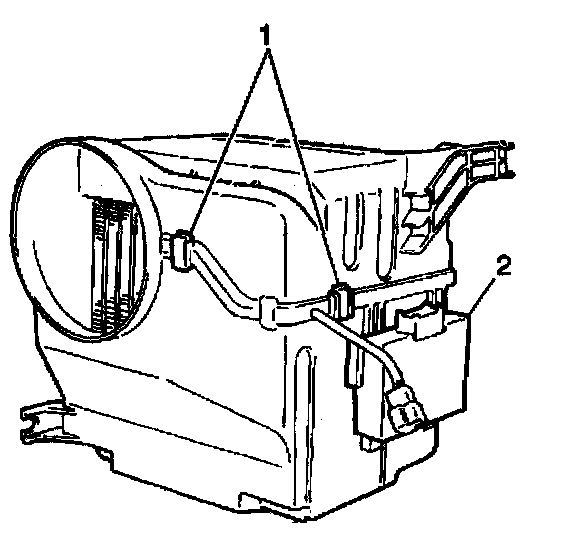

1. Unsnap and slide the Air Conditioning (A/C) compressor control module (2) up in order to remove the A/C compressor control module from the evaporator case.
2. Disconnect the A/C compressor control module electrical connector.
3. Remove the A/C compressor control module from the vehicle.

INSTALLATION PROCEDURE
1. Install the A/C compressor control module (2) to the vehicle.
2. Connect the A/C compressor control module electrical connector.
3. Install the A/C compressor control module to the evaporator case. Slide and snap the A/C compressor control module into place.
