Compressor Clutch Coil: Service and Repair

Compressor Clutch Coil and/or Pulley Rim Removal Procedure


TOOLS REQUIRED
^ J 39200 Digital Multi meter
^ J 41384 Clutch Plate Holder/Remover





IMPORTANT:
^ When servicing the compressor, keep dirt and other foreign material from getting on the compressor pants and into the system. Clean tools and a clean work area are essential for proper service. Keep the compressor and the pants clean at all times. Any parts which are to be reassembled should be cleaned with Trichloroethane, naphtha, kerosene, or an equivalent solvent. Air dry the parts and wipe clean with a lint-free cloth.
^ All repairs and procedures for the compressor must be performed after the A/C system refrigerant has been discharged and recovered, and after the compressor has been removed from the vehicle.
^ When the compressor is removed from the vehicle for servicing, drain and discard the oil remaining in the compressor. Add 90 cc (3.0 ft oz) of new refrigerant oil when the repairs are complete.

1. Remove the compressor from the vehicle.

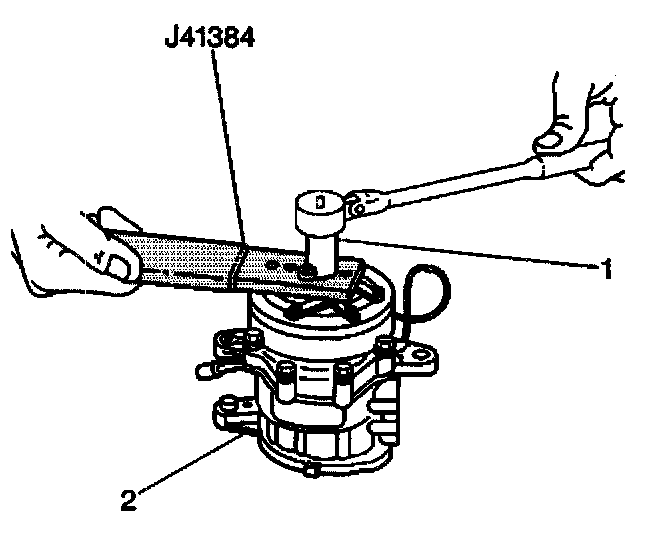

2. Remove the pressure plate nut and the washer from the drive shaft using the J 41384.
3. Remove the pressure plate from the drive shaft using the J 41384.




4. Remove the clutch pulley snap ring (1) and the shim. Use the appropriate snap ring pliers.

IMPORTANT: Do not damage the clutch pulley during removal.

5. Remove the clutch pulley from the compressor by tapping with a plastic hammer.




6. Remove 1 screw (2) and the clutch coil wire retainer.
7. Remove the clutch coil snap ring using the snap ring pliers.
8. Remove the clutch coil from the compressor.
9. Inspect the pressure plate for excessive wear and scoring. Replace the pressure plate if needed.
10. Inspect the clutch pulley for excessive wear and scoring. Replace the clutch pulley if needed.

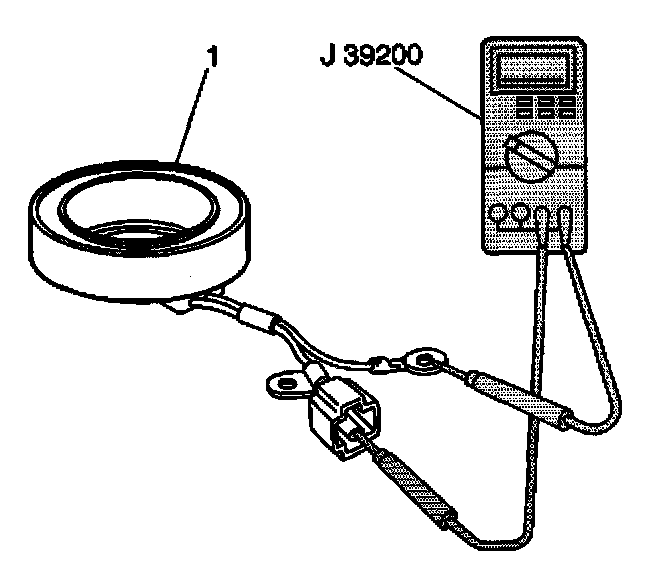

11. Measure the clutch coil resistance using the J 39200. Replace the clutch coil if the resistance is not within specifications.

Clutch Coil Resistance
2.9-3.8 at 20°C (68°F).

INSTALLATION PROCEDURE

TOOLS REQUIRED
J 41384 Clutch Plate Holder/Remover




1. Install the clutch coil to the compressor. Secure the clutch coil with the snap ring using snap ring pliers.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the clutch coil wire (3) retainer to the compressor. Secure the retainer with the 1 screw (2).

Tighten
Tighten the clutch coil wire retainer screw to 2-2.5 N.m (17.1-22.12 lb in).




3. Install the clutch pulley to the compressor. Secure the clutch pulley with the snap ring (1) and the shim.




4. Install the pressure plate (1) to the compressor drive shaft.
5. Adjust the clearance (2) between the clutch pulley (3) and the pressure plate. Replace the shim in order to obtain the proper clearance.

Pressure Plate-to-Pulley Clearance
0.35-0.65 mm (0.014-0.025 in).




6. Install the pressure plate washer and the nut to the compressor drive shaft using J41384.

Tighten
Tighten the pressure plate nut to 15-20 N.m (10.815.2 lb ft).

7. Install the compressor to the vehicle.
