9. Water Pump Removal

IMPORTANT: The drive belt tensioner must be unloaded and the drive belt removed before the water pump is removed.

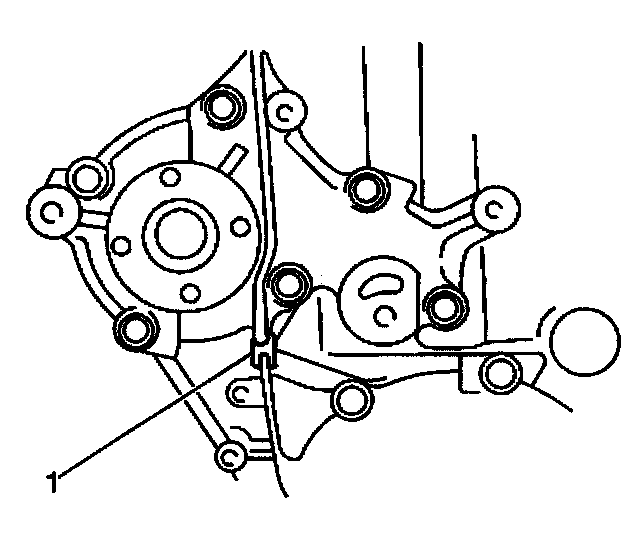

1. Remove the water pump housing bolts and nuts.
2. Remove the water pump.
