53. Valve Rocker Arm Cover Installation

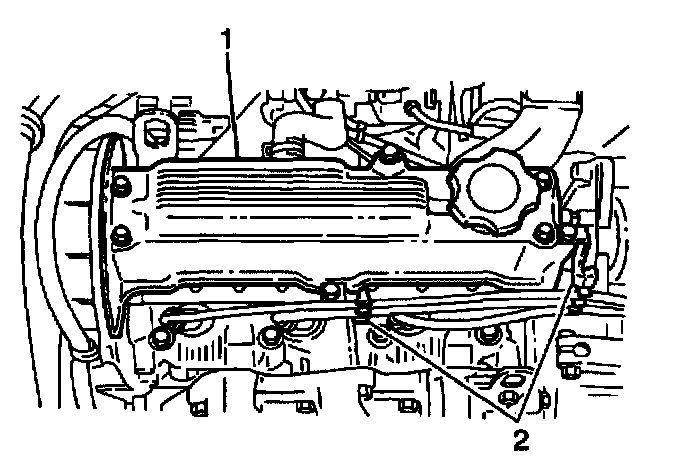

1. Install the new valve rocker arm cover gasket to the valve rocker arm cover (1).
2. Install the valve rocker arm cover to the cylinder head.

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Secure the valve rocker arm cover with the nuts.
Tighten the cylinder head cover nuts to 11 Nm (97 inch lbs.)
