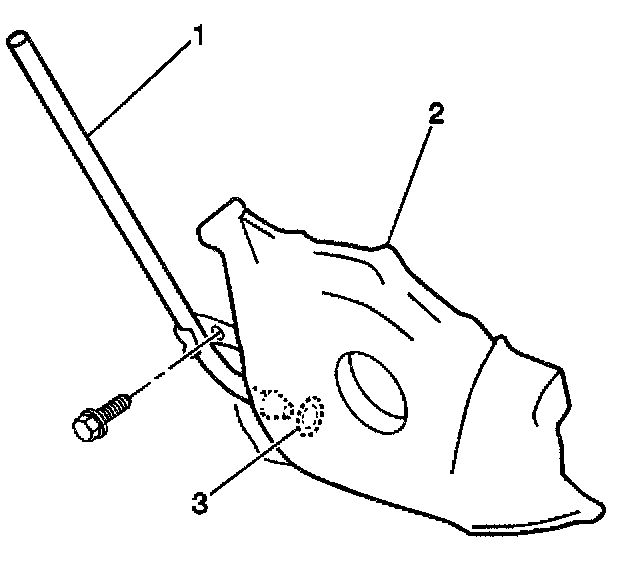

5. Oil Level Indicator and Tube Removal

1. Remove the oil level indicator from the guide tube.
2. Remove the guide tube bolt from the oil pump housing (2).
3. Remove the guide tube (1) from the oil pump housing (2).
